200W 905nm single emitter laser diode TO-18
Key Featrue:
High output power: 200W
center Wavelength : 905nm
wavelength tolerance: ±5nm
Application:
Display
Industary
Medical
Lighting
Introducing our 200W 905nm Single Emitter Laser Diode TO-18. With a high output power of 200W and a center wavelength of 905nm, it ensures optimal performance. Its wavelength tolerance of ±5nm enhances precision in various applications. Whether for display, industry, medical, or lighting purposes, this laser diode meets the most demanding requirements. Trust in its reliability and efficiency to power your projects forward.
|
We Supply 200W 905nm single emitter laser diode TO-18.We specialize in Diode Laser for many years.Covering most of Europe and the American market,We are expecting become your long-term partner in China.
|
Product view
Item NO:TO905DL200
| Optical | |
| Center Wavelength | 905nm |
| Output Power | 200W |
| Wavelength Tolerance | ±5nm |
| Specttral Width | 5nm |
| Fast Axis Divergence(FWHM) | 25Deg |
| Slow Axis Divergence(FWHM) | 10Deg |
| Polarization Mode | TE |
| Slope Efficiency | ≥1.0W/A |
| Electrical | |
| Operating Current Lop | 25A |
| Threshold Current Lth | 1A |
| Operating Voltage Vop | 28V |
| Power Conversion Efficiency | ≥45% |
| Thermal | |
| Operating Temperature | 20-25℃ |
| Storage Temperture | -40-85℃ |
| Wavelength temperature coefficient | 0.3nm/℃ |
Deliver Times :Normally 1-2 weeks
Deliver Way:DHL, FedEX
Payment Term:T/T and Western Union for your choice

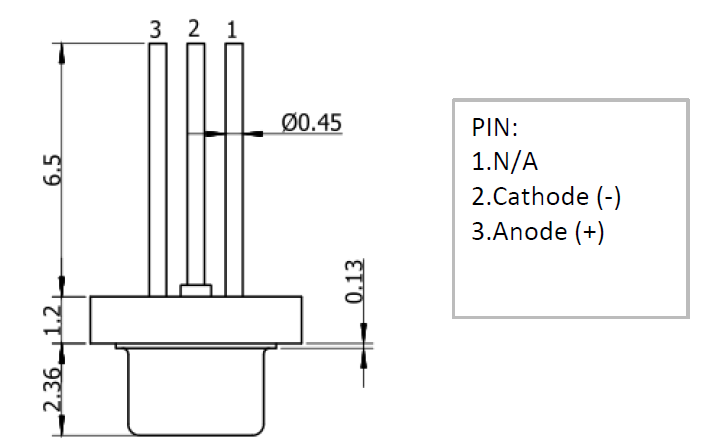

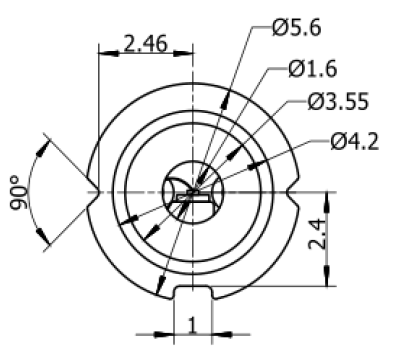

Package Drewing：
Packing: There are three encapsulation modes.
1,Coaxial T Encapsulation
2,Double leg S package
3,TO Encapsulate
|
|
