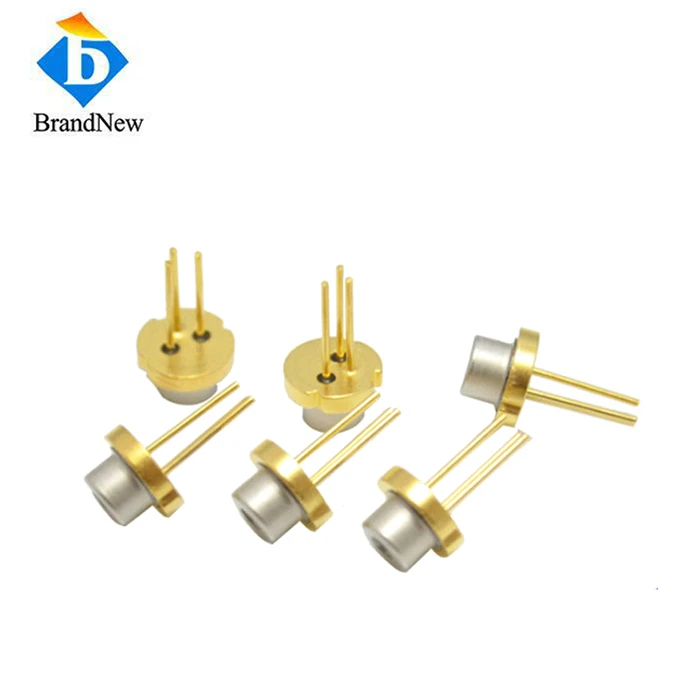

532nm 2W TO9 Green LD Mounted Diode
Features:
- TO9 delivers stable 532nm green light output
- Low threshold current for easy system integration
- Thermal adaptability supports wide‑range storage temp
Applications:
- Biomedical instrumentation: fluorescence excitation and biological sample analysis
- Scientific research: laboratory green light source for optical experiment setup
- Laser display: projection and small‑size visual light source equipment
- Laser indication: alignment, positioning and marking auxiliary light source
This TO9 mounted 532nm green laser diode features compact TO‑style packaging and stable optical performance, well suited for integration into biomedical devices, research instruments and laser display systems.
Data Sheet
Item No: TO532DL2
| Optical | Typical Value |
| Center Wavelength | 532nm |
| Output Power | ~1.8W |
| Beam Divergence Fast(Full Width at 1/e2) | 46Deg |
| Beam Divergence Slow(Full Width at 1/e2) | 12Deg |
| Electrical | |
| Operating Current Iop | 2A |
| Threshold Current Ith | 0.4A |
| Operating Voltage Vop | 5V |
| Thermal | |
| Test Temperature | 0~50℃ |
| Storage Temperature | -40~80℃ |

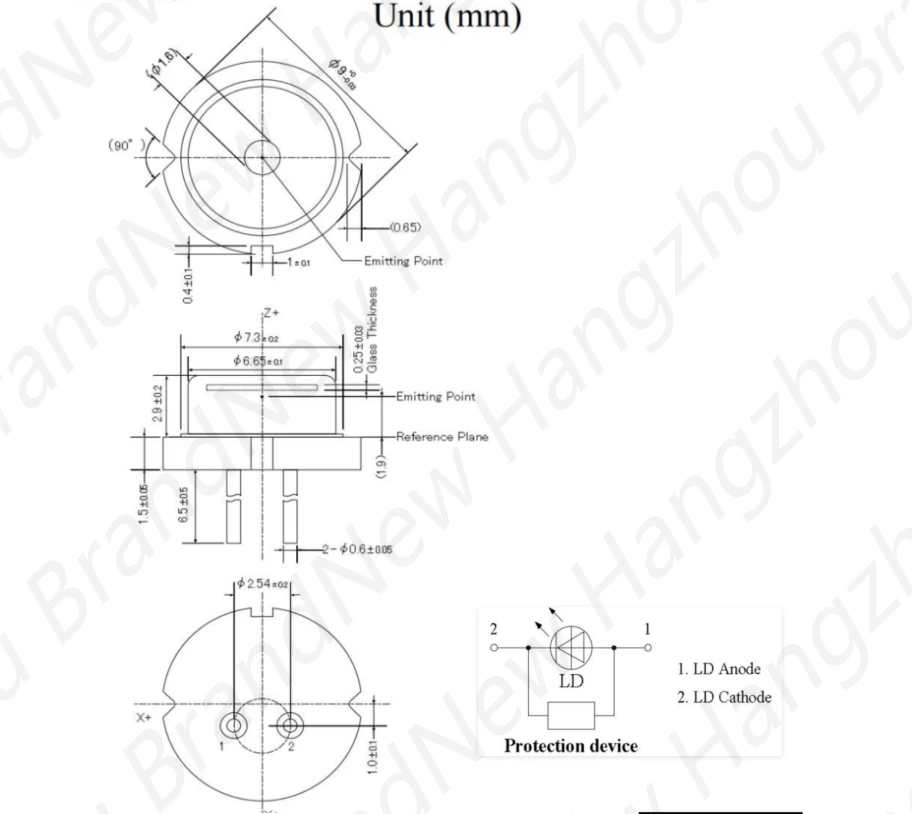

Drawing:
