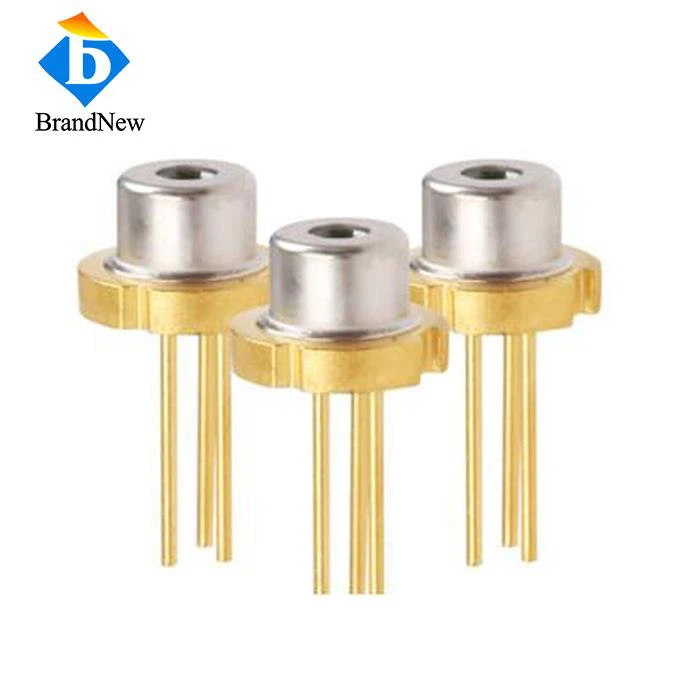

5W 940nm TO-Mount Laser Diodes
Quick details:
Can Type: φ 5.6 mm Floating Mounted with Protection device.
Available PD or FAC function
Pin length can be customized
Long lifetime>10000 hours
Application: Laser Light Source Medical Application
Laser Detection Industry Use
Laser Rangefinder
Data sheet:
Item No: TO940DL5
| Optical | |
| Center Wavelength | 940nm |
| Wavelength Tolerance | ±3nm |
| Output Power | 5W |
| Electrical | |
| Operating Current Iop | 5A |
| Threshold Current Ith | 0.8A |
| Operating Voltage Vop | 2V |
| Thermal | |
| Operating Temperature | 10~35℃ |
| Storage Temperature | -40~80℃ |

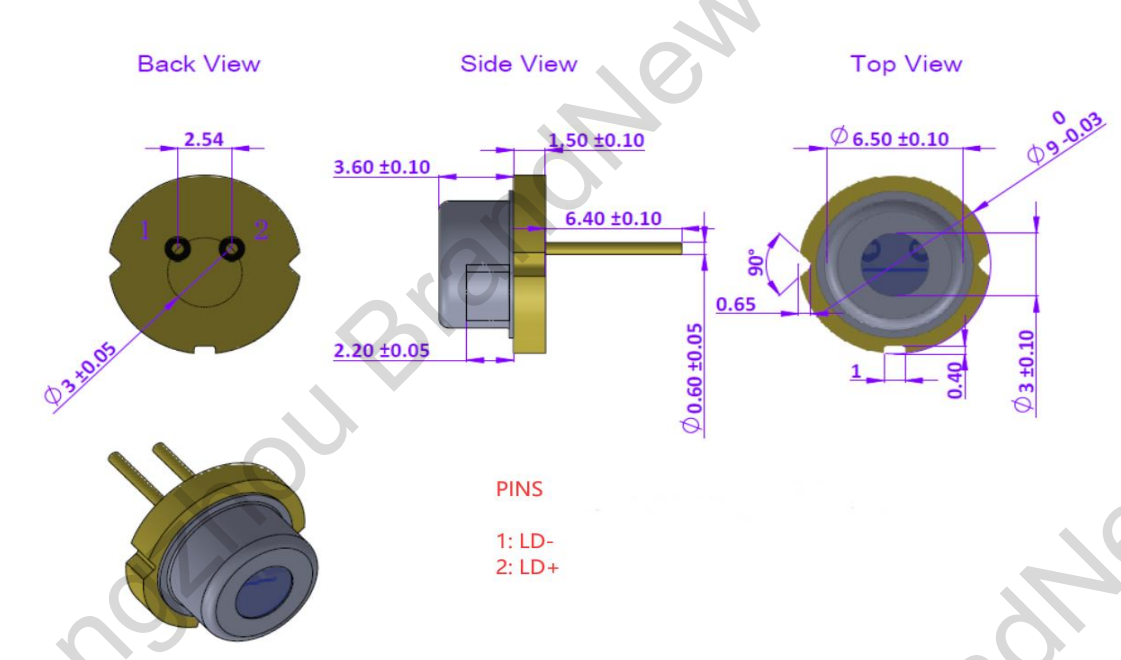

Size Drawing:
Order Procedure:
-
Contact us for more details by Email
-
After confirm all technical parameters, we will send PI to you for payment, payment term is T/T or Western Union
-
Once payment is done,we will arrange production immediately.
-
Delivery time is 2-4 weeks depends on different quantity.
-
After delivery,we will send you Fedex or DHL tracking number to follow up.
