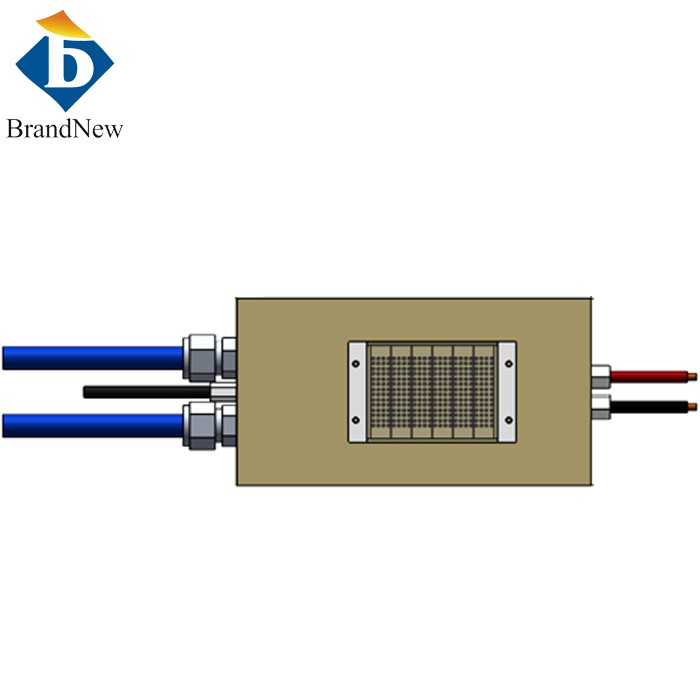

1000W 808nm VCSEL Diode Laser Array
Brandnew presents state-of-the-art Vertical Cavity Surface Emitting Laser (VCSEL) chip and die components tailored for applications in data communication and sensing. The 1000W 808nm VCSEL die diode laser not only delivers exceptional power and efficiency but also boasts a remarkable operational lifetime exceeding 10,000 hours, ensuring enhanced stability and reliability. Recognizing the inherent limitations of individual VCSEL emitters in terms of size and output power, we also offer VCSEL arrays. In these arrays, VCSEL chips are densely packed to collectively generate a significantly higher output power level.
Key Features:
808nm Vertical-Cavity Surface-Emitting laser array capable of producing an output power of 1000W.
Exhibits minimal wavelength temperature sensitivity.
Options available for chip placement on submount or heatsink upon request.
Customizable features such as other wavelengths, chip dimensions, and emitter patterns are available upon request.
Usage
Solid-state pumping souce
Laser cutting
Laser welding
Data sheet
Item Number: VC808HA1000
| Optical | |
| Center Wavelength | 808nm±10nm |
| Output Power | 1000W |
| Electrical | |
| Threshold Current Lth | 30A |
| Operating Voltage Vop | 200V |
| Power Supply | Optional |
| Water Chiller | Optional |
| Thermal | |
| Operating Temp. | 15~35℃ |
Laser Size:
