Description
8W 940nm VCSEL Chip for LiDAR, 3D Sensing
Features：
- VCSEL technology: Vertical-Cavity Surface-Emitting Laser
- Ideal for high-speed applications
- 1mm*1mm
- Reliable performance
Application：
- LiDAR, 3D Sensing
- Surveillance
- Structured light projection
- Consumer electronics
Data sheet
Item No.: VC940ME8
| Optical | Typical Value |
| Center Wavelength λ | 940nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 8W |
| Working Mode | QCW |
| Pulse Cycle | 6% |
| Pulse Width | 0.1ms |
| Divergence Angle | 28Degree |
| Emitter Quantity | 560 |
| Electrical | |
| Threshold Current lth | 0.4A |
| Operating Current Lop | 3.5V |
| Operating Voltage Vop | 5V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -40~+105℃ |

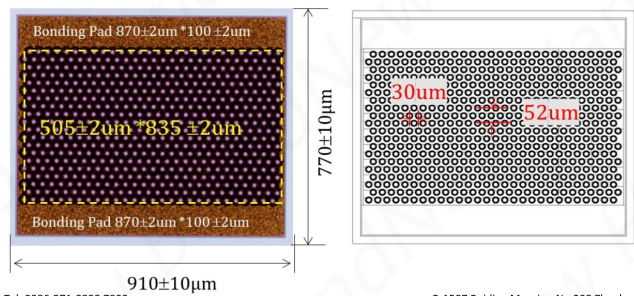

Drawing：
This 8W 940nm VCSEL chip provides high power and stable infrared output in a compact die form. It is ideal for ToF sensing, 3D imaging, facial recognition, and other infrared lighting applications. Reliable performance and low power consumption make it ideal for integration into consumer and industrial systems.
