Description

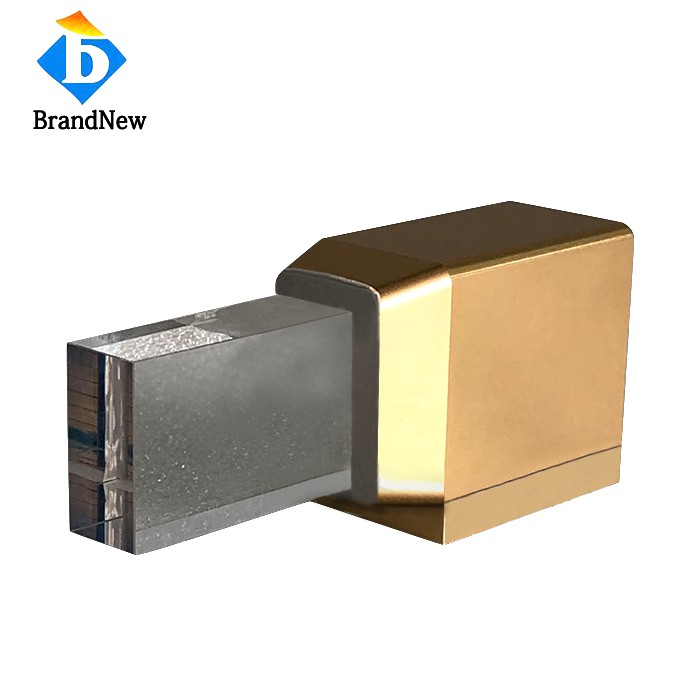

808nm 1200W 10Bars Laser Stack With Sapphire
Features:
- 10-bar stack 1200W output at 808nm, with sapphire.
- Excellent thermal conductivity and heat dissipation.
- High electro-optical conversion efficiency, robust structure.
Applications:
- Laser Medical & Aesthetic Systems: Applied in high-power medical devices including laser hair removal, skin rejuvenation, physiotherapy, and surgical laser systems.
- Solid-State & Fiber Laser Pumping: Widely used as a high-power pump source for Nd:YAG, Nd:YVO4 solid-state lasers and high-power fiber lasers.
Data Sheet
Item No: WC808GZ1200
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 1200W |
| Number of Bars | 10 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 12Deg |
| Pulse Width | <300ms |
| Duty Cycle | <30% |
| Electrical | |
| Operating Current Iop | 120A |
| Threshold Current Ith | 18A |
| Operating Voltage Vop | 20V |
| Thermal | |
| Operating Temperature | 20~35℃ |
| Storage Temperature | -40~85℃ |
|
Water Pressure |
~0.5Mpa |
| Water Flow Rate | 2.5~4L/min |

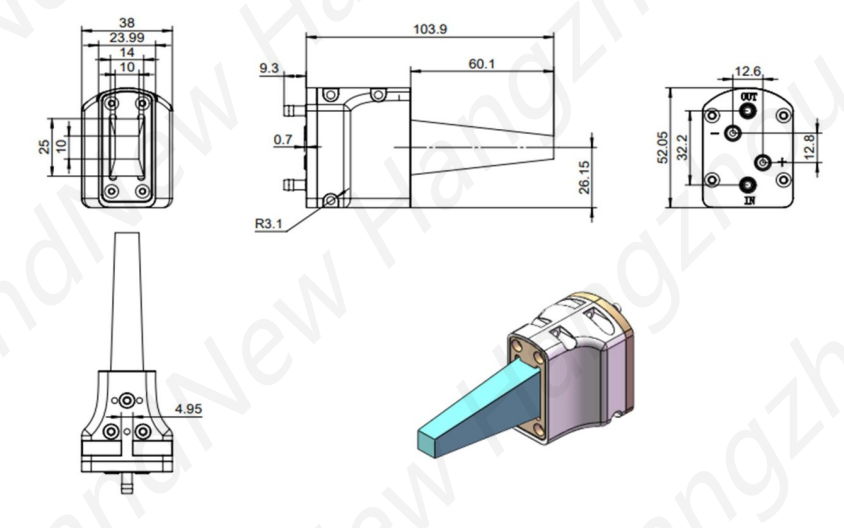

Drawing:
