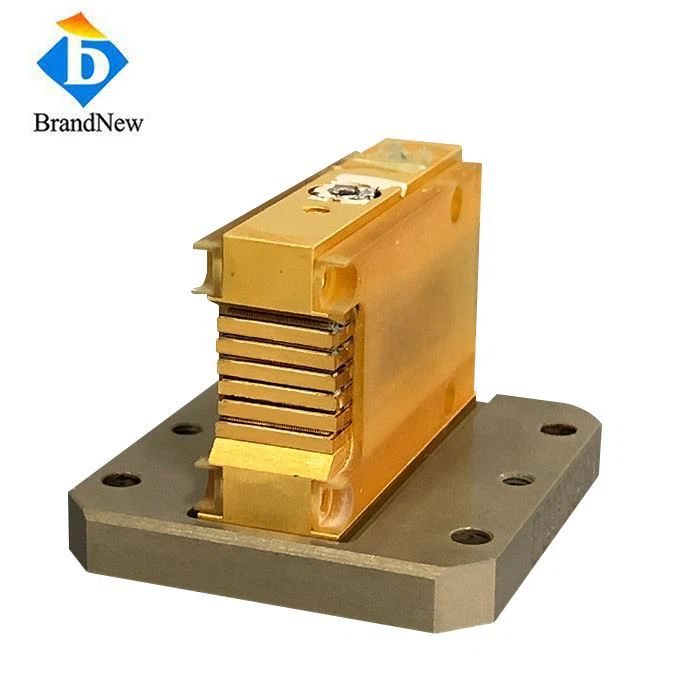

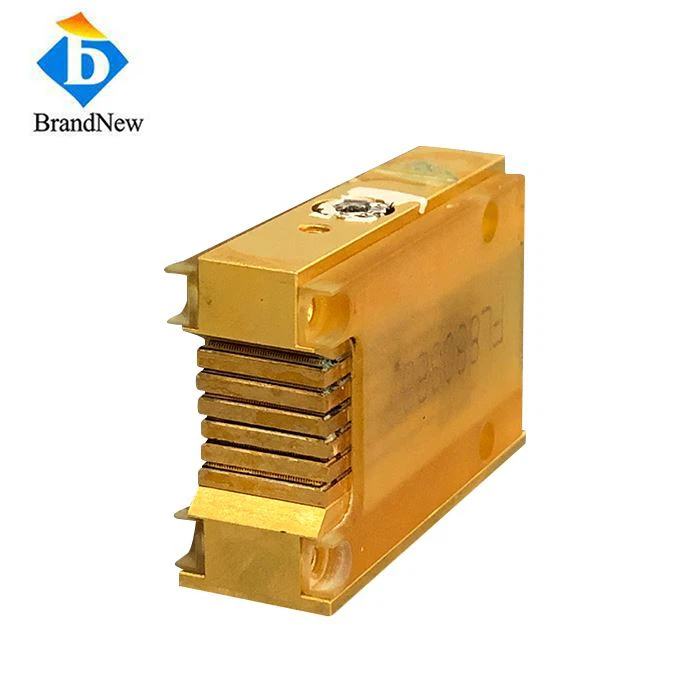

New 300W 808nm CW Micro Channel Vertical Stack Diode Laser
300W 808nm Micro Channel Vertical Stack Diode Laser mostly for laser hair removal handle repair.
Small Bar-to-Bar pitch for increased brightness. We use micro channel system and this stack used for many brand of hair removal machine repairing and replacement, such as ADSS, Honkon, Sincoheren PZ Laser etc.
Feature:
Diode laser bar from Germany
CW working mode with high stability
Special design for diode laser stack
Frame size can be customized
50W output power per bar at 808nm central wavelength
Application:

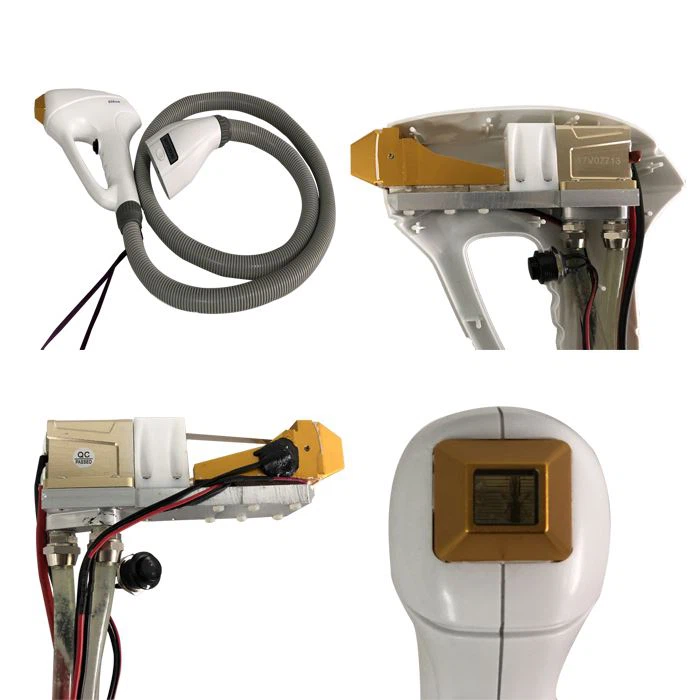

Laser hair removal machine handle repair
Skin Rejuvenation
Tattoo Removal
Scar Removal
Medical & Cosmetic
Data sheet
Item No: WC808VS300
Item Name: New 300W 808nm CW Micro Channel Vertical Stack Diode Laser
Optical | |
Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Working Mode | CW |
Output Power Per Bar | 50W |
Number of Bars | 6 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 12Deg |
Electrical | |
Operating Current Iop | 95~110A |
Threshold Current Ith | 18~20A |
Operating Voltage Vop | 5.5~5.7V |
Thermal | |
Operating Temperature | 15~30℃ |
Storage Temperature | 0-55℃ |
Drawing:
