Description
Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 808nm 50w single bar diode laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.
808nm 50W Single Bar Diode Laser
Key features:
- Low thermal resistance copper heat sink base, strong heat dissipation capacity
- Long-hour continuous operation with minor power attenuation
- Mature single bar packaging process, consistent spectral and power performance in mass production
- Wide compatibility with optical shaping components
- Easy integration into solid-state laser pump systems and industrial thermal equipment
Data sheet:
Item No.: CC808DL50
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Working Mode | CW |
| Output Power | 50W |
| Spectrum Width FWHM | 5nm |
| Fast Axis Divergence(FWHM) | 35Deg |
| Slow Axis Divergence (FWHM) | 8Deg |
| Electrical | |
| Operating Current Iop | 50A |
| Threshold Current Ith | 6A |
| Operating Voltage Vop | 1.8V |
| Thermal | |
| Operating Temperature | -40~60℃ |
| Storage Temperature | -55~85℃ |
| Wavelength Temperature Coefficient | ～0.3nm/℃ |

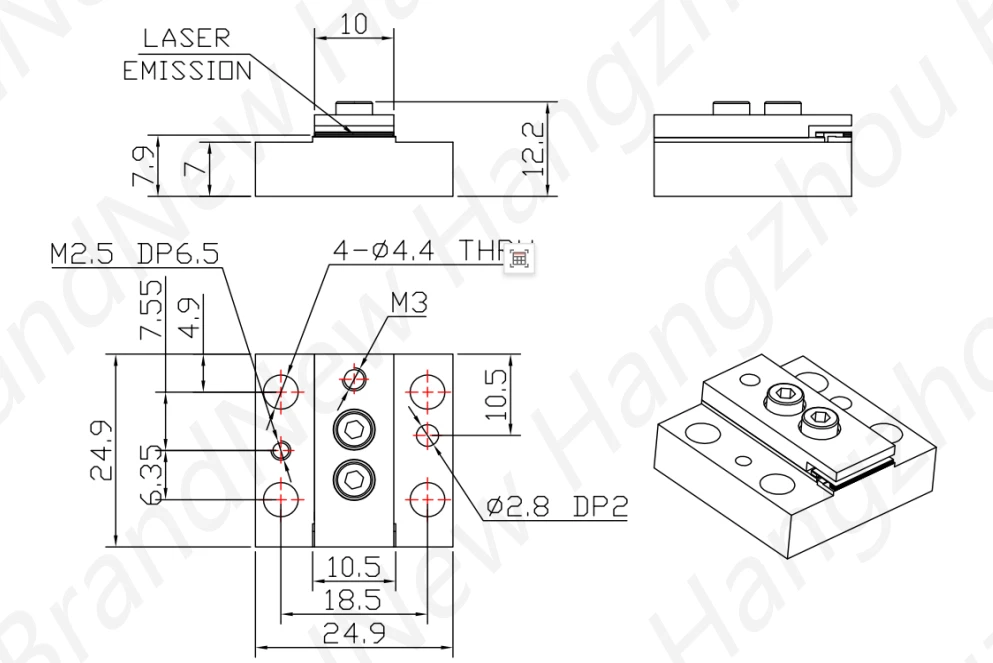

Drawing:
