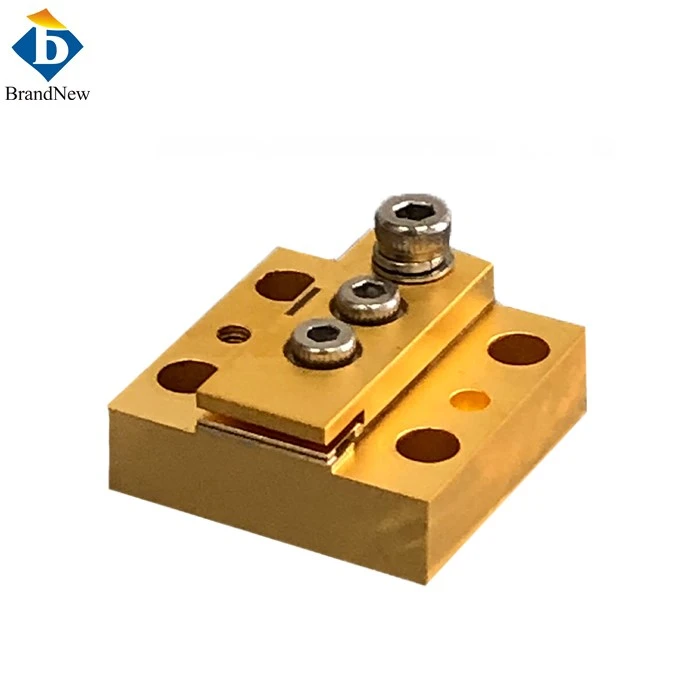

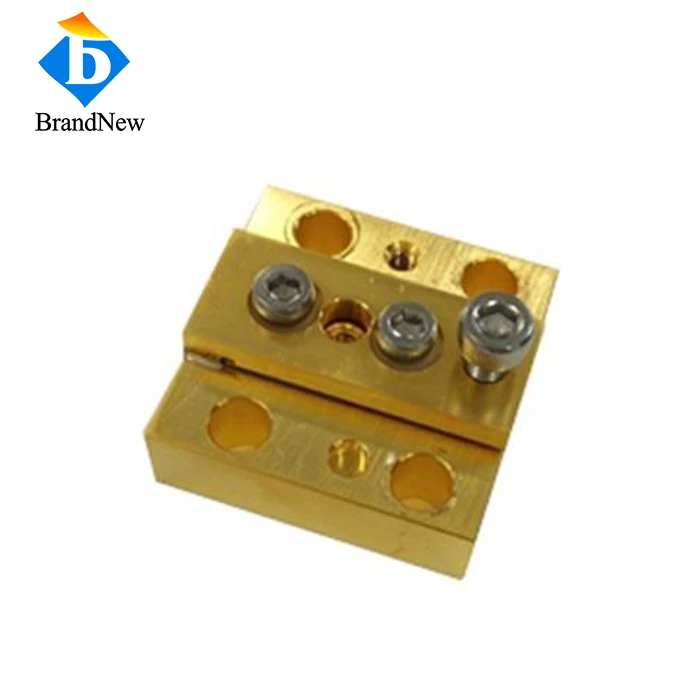

830nm 80W CW Conduction Cooled Diode Laser
Features:
- 830±20nm, 80W continuous‑wave high power output
- Conduction‑cooled structure
- Controlled divergence angle: fast axis 40Deg, slow axis 10Deg
Applications:
- Industrial material surface treatment and laser heating processing
- Medical aesthetic laser equipment for skin therapy
- Solid‑state laser pumping source
- Scientific research laboratory optical experimental setup
This 830nm 80W conduction‑cooled CW diode laser delivers high continuous output power with air‑cooled conduction cooling design. Featuring stable optical‑electrical performance and manageable beam divergence, it fits well for pumping, medical aesthetics, industrial thermal processing and multiple scientific research scenarios.
Data Sheet
Item No: CC830DL80
| Optical | Typical Value |
| Center Wavelength | 830nm |
| Wavelength Tolerance | ±20nm |
| Output Power | 80W |
| Working Mode | CW |
| Fast Axis Divergence FWHM | 40Degree |
| Slow Axis Divergence FWHM | 10Degree |
| Electrical | |
| Operating Current Iop | 82A |
| Threshold Current Ith | 12A |
| Operating Voltage Vop | 2V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |

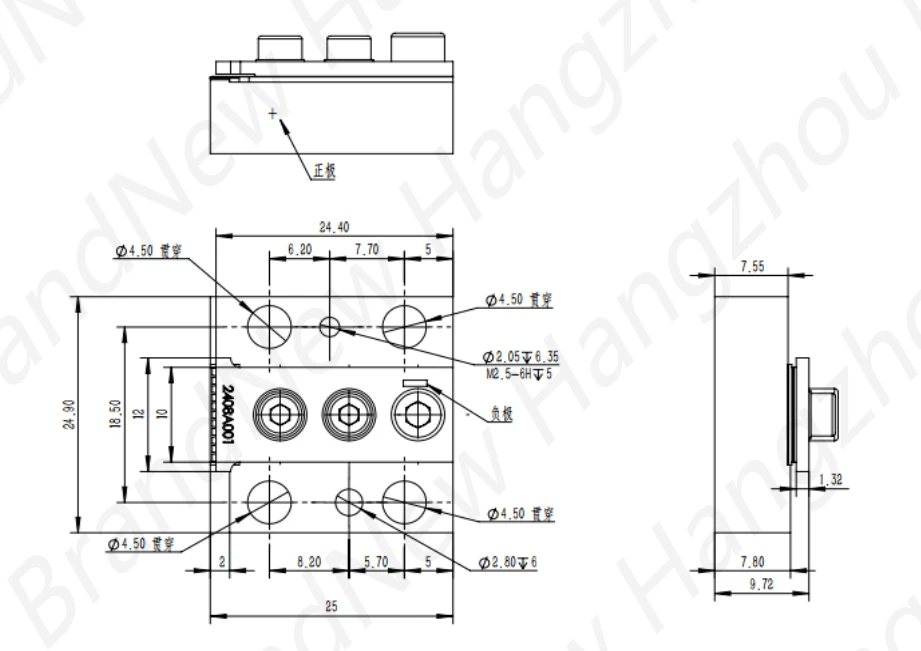

Drawing:
