Description
Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 50W 808nm Single Bar Conduction Laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.
50w 808nm Conduction Cooled Laser Diode
Features：
- 808nm single bar design, stable 50W CW peak power output
- Single linear emitter bar structure, narrow light-emitting strip
- Low thermal resistance copper heat sink base
Applications:
- Nd:YAG / Nd:YVO4 solid-state laser pump source for marking, engraving and cutting machines
- Medical rehabilitation physiotherapy, skin beauty and minimally invasive soft tissue treatment equipment
- Industrial plastic welding, resin curing and non-metal material thermal processing devices
- Laboratory infrared optical testing and laser experimental calibration light source
Specifications
Item No.: CC808DL50
| Optical | Typical |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 50W |
| Spectrum Width FWHM | 5nm |
| Working Mode | CW |
| Fast Divergence FWHM | 35DEG |
| Slow Divergence FWHM | 10DEG |
| Electical | |
| Threshold Current Ith | 6A |
| Operating Current Iop | 50A |
| Operating Voltage Vop | 1.8V |
| Thermal | |
| Operating Temperature | -40~60℃ |
| Storage Temperature | -55~85℃ |
| Wavelength Temp Coefficient | 0.3nm/℃ |

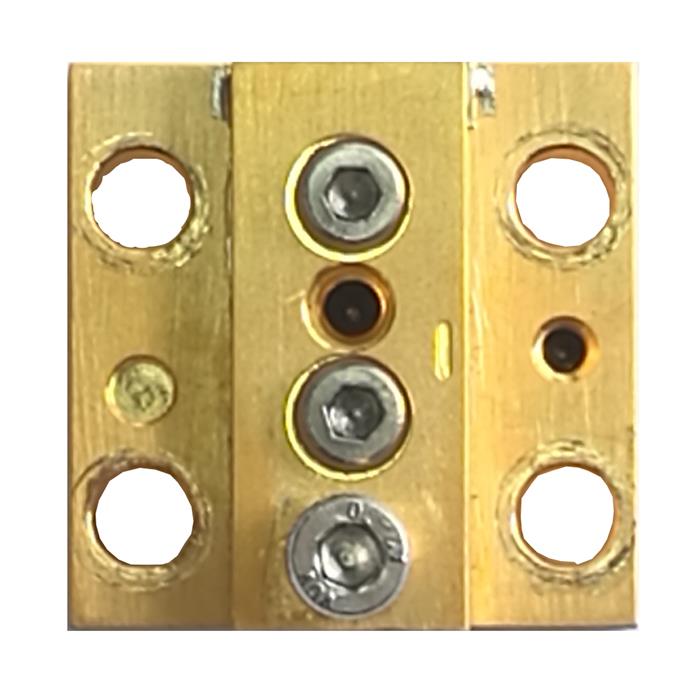

Product View：
Concrete figure：
