Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 950nm 80w conduction cooled cw diode laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

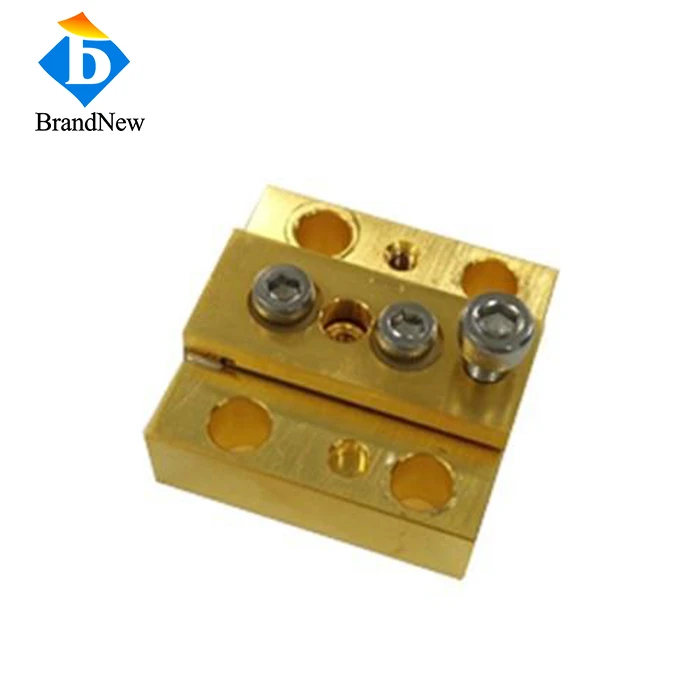

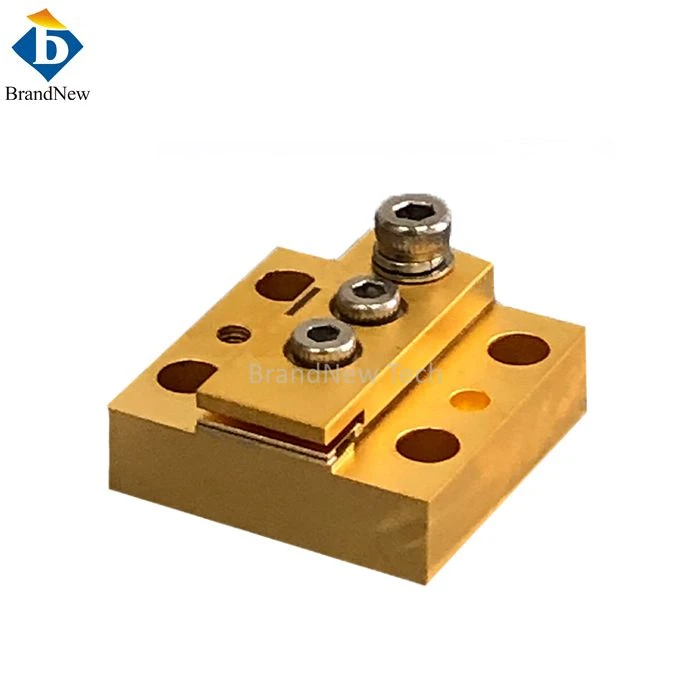

950nm 80W Conduction Cooled CW Diode Laser
Features:
- 80W CW output at 950nm with ±10nm wavelength tolerance.
- Conduction cooled eliminates liquid cooling requirements.
- Narrow 5nm FWHM spectrum width for high spectral purity.
Applications:
- Functions as high-power pump source for solid-state and fiber laser systems.
- Applied in industrial surface heat treatment and polymer thermal processing.
- Deployed in medical phototherapy devices for tissue photomodulation treatment.
- Suitable for infrared illumination and spectroscopic analysis equipment.
This 1W red C-Mount laser diode covers wavelength range 630~650nm. Equipped with standard C-Mount heat dissipation interface, it realizes reliable continuous high-power output. It is widely adopted as core light source for biomedical devices, optical positioning, machine vision and scientific optical experiments.
Data Sheet
Item No: CM635DL1
| Optical | Typical Value |
| Center Wavelength | 950nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 80W |
| Spectrum Width FWHM | 5nm |
| Working Mode | CW |
| Fast Axis Divergence FWHM | 35Degree |
| Slow Axis Divergence FWHM | 10Degree |
| Electrical | |
| Operating Current Iop | 85A |
| Threshold Current Ith | 18A |
| Operating Voltage Vop | 1.6V |
| Thermal | |
| Test Temperature | 30℃ |
| Storage Temperature | -40~85℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |

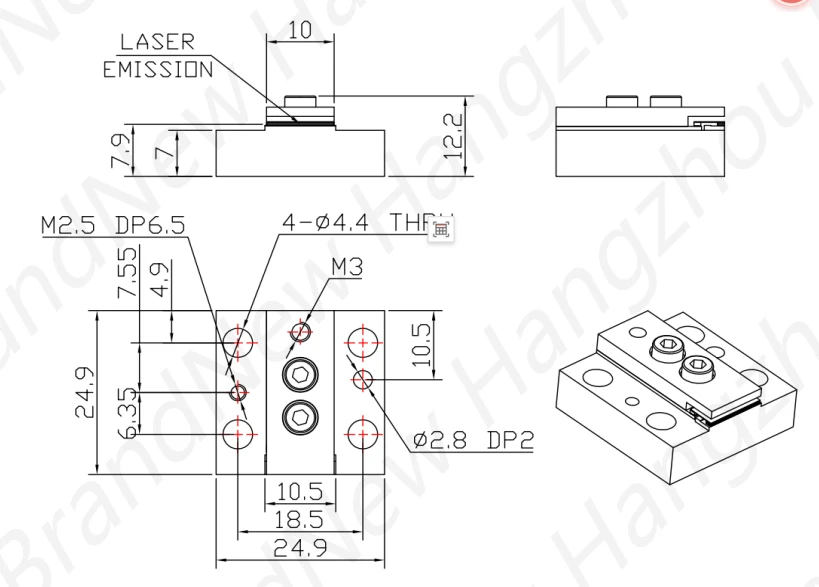

Drawing:
Why Partner with Hangzhou Brandnew Technology Co., Ltd.?
"By working directly with the source, you gain a decisive competitive edge:
15
years experience
- Core Technology: Proprietary optical designs ensure industry-leading performance and strict quality consistency.
- Customize available: Our veteran engineers and flexible factory rapidly turn your custom requirements into scalable solutions, shortening your R&D cycle.
- Factory Pricing & Strict QC: From raw materials to final aging tests, our rigorous quality control guarantees maximum reliability at highly competitive, direct factory prices.
Hot Tags: 950nm 80w conduction cooled cw diode laser suppliers, manufacturers China, factory, wholesale, made in China
