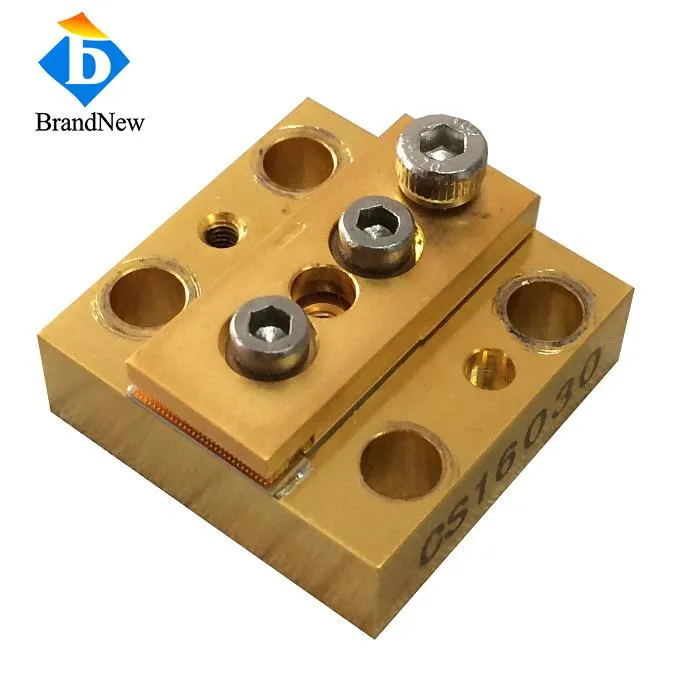

60W 976nm Single Bar Diode Laser CW CS Mount
Features:
- Au/Sn soldering
- Narrow Spectral Width
- CW working mode, 60W output power, 976nm central wavelength
- Uniform beam profile, Narrow spectrum
- Standard configuration and customer-design package
- Laser bar is imported from German, high stability and reliability
- Small order accepted
- Newest technology
- Long lifetime>10000 hours
- Prompt delivery
Applications:
- Medical
- Cosmetic
Data sheet:
Item No.: CC976DL60
Item Name: 60W 976nm CW Conduction Cooled Single Bar Diode Laser
| Optical | |
| Center Wavelength | 976nm |
| Wavelength Tolerance | ±5nm |
| Working Mode | CW |
| Output Power | 60W |
| Spectral Width FWHM | ≤6nm |
| Fast Axis Divergence(FWHM) | 30Deg |
| Slow Axis Divergence (FWHM) | 9Deg |
| Slope Efficiency | ~1.1W/A |
| Electrical | |
| Operating Current Iop | ≤90A |
| Threshold Current Ith | ≤12A |
| Operating Voltage Vop | ≤2.5V |
| Power Conversion Efficiency | ≥40% |
| Thermal | |
| Operating Temperature | 15~30℃ |
| Storage Temperature | 0-55℃ |
| Wavelength Temperature Coefficient | ～0.3nm/℃ |
| Heatsink Capability | >70W |
Drawing:
60W 976nm Single Bar Diode Laser:
Operating the product outside of its maximum ratings may cause device failure or a safety hazard. Power supplies used with the device must be employed such that the maximum peak optical power cannot be exceeded. A proper heatsink for the Device on thermal radiator is required, sufficient heat dissipation and thermal conductance to the heatsink must be ensured.
