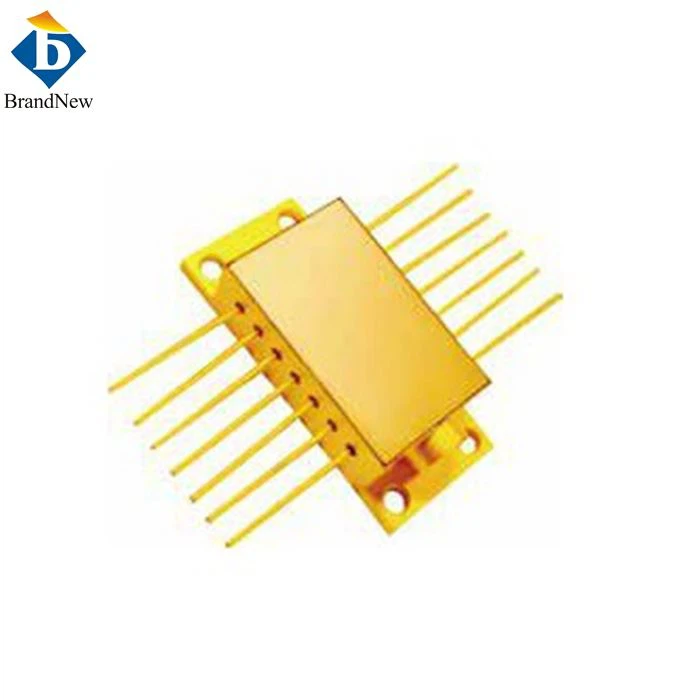

100mW 532nm Free Space Butterfly Laser Diode
BrandNew offers Free Space Narrow Linewidth Laser Diodes designed to meet Raman spectroscopy requirements. The spectral linewidth is very narrow due to an integrated Volume Bragg Grating (VBG) and typically less than 0.1nm. Careful thermomechanical control and high-precision alignment inside the laser is important to achieve high stability in the output wavelength and linewidth, especially when operating the laser at varying ambient temperatures. The FRLD-VBG series laser diodes are packaged in a solid Butterfly package with a free space output. An integrated thermo-electric cooler (TEC) is optionally available.
Raman Spectroscopy Applications
Fiber Amplifier Seeding
Free-Space Optical Communications
Optical Metrology and Sensors
Data Sheet:
Item No:FS532DL100
| Optical | |
|
Center Wavelength |
532nm |
| Wavelength Tolerance | ±3nm |
|
Output Power |
100mW |
|
Electrical |
|
|
Threshold Current |
1A |
|
Operating Voltage |
2.1V |
| Thermistor / Rt (kΩ/β (25℃)) | 10±5%/3450 |
| TEC Max Current Imax (A) | 2.5A |
| TEC Max Voltage Vmax (V) | 6.3V |
| Thermal | |
|
Operating Temperature |
15~35℃ |
|
Storage Temperature |
-20-50℃ |
| Wavelength Temperature Coefficient | 0.01nm/℃ |
Package Drawing:
