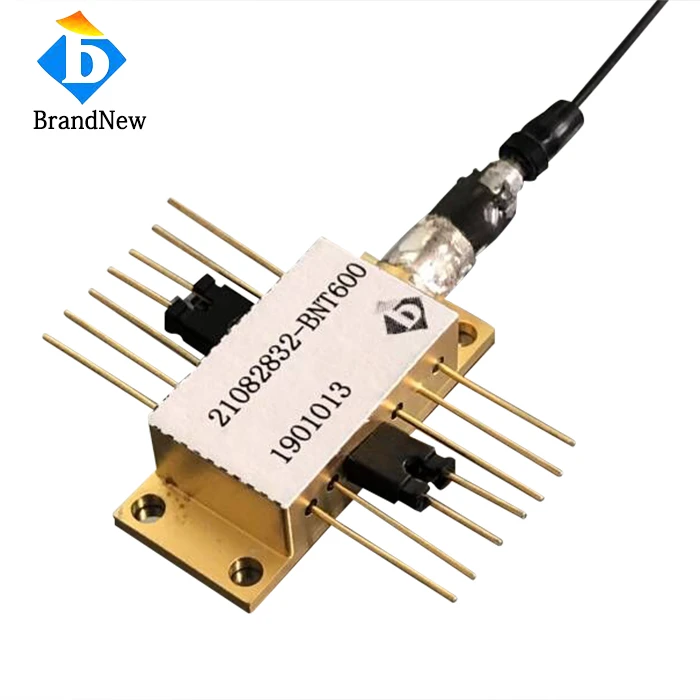

1064nm 600mW Butterfly 14Pins Fiber Coupling LD

Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 1064nm 600mW Butterfly 14Pins Fiber Coupling LD. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

1064nm 600mW Butterfly 14Pins Fiber Coupling LD



Features:

• Narrow spectrum width less than 1nm, stable wavelength
• PM with bare end, fiber length >1m for flexible connection
• Integrated TEC, PD and thermistor for precise temperature

Applications:

• Precision optical measurement systems, leveraging its narrow linewidth to deliver stable light source for interferometry and optical sensing.
• Scientific laboratory optical research, serving as a polarized single wavelength light source for optical experiment setups.
• Laser seed source for low-power solid-state laser systems, providing high coherence pumping and signal emission.
• Optical sensing and non-destructive testing equipment, supporting stable continuous light output for material inspection.

This 1064nm 600mW butterfly 14-pin fiber coupled laser diode adopts PM bare-end fiber, equipped with built-in TEC, PD and thermistor. It features ultra-narrow spectral width and accurate wavelength control. The compact butterfly package ensures stable operation, and it is widely used as high-quality coherent light source for optical measurement, scientific research and laser seeding applications.

Data Sheet

Item No: FC1064SM06

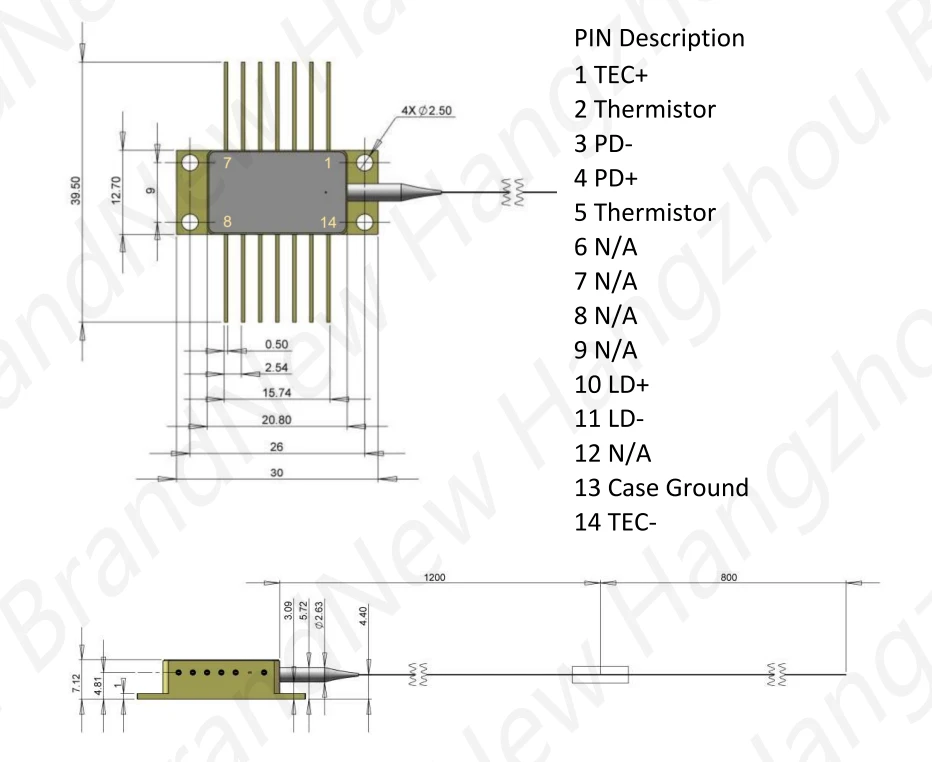

Drawing:
