Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 1550nm 100w cw 400um fiber coupled laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

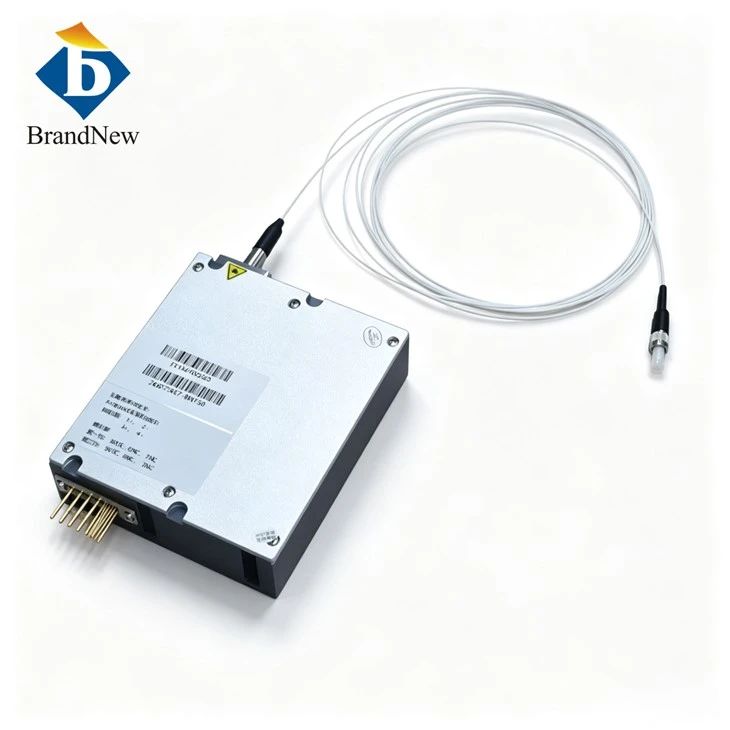

1550nm 100W CW 400um Fiber Coupled Laser
Feature:
- CW 100W stable output at 1550nm wavelength band.
- 400μm core fiber with 0.22 NA for efficient light transmission.
- Narrow spectral width below 15nm for high spectral purity.
Applications:
- Used as pumping source for mid-infrared solid-state and fiber laser systems.
- Applied in industrial thermal processing for plastic welding and material surface treatment.
- Deployed in long-range optical sensing and laser radar measurement equipment.
- Suitable for medical aesthetic and minimally invasive laser treatment devices.
This 1550nm 100W CW fiber coupled diode laser is equipped with 400μm core bare fiber, delivering continuous high-power output with narrow spectrum. It maintains stable electro-optical performance at 25℃ working condition. The fiber coupled design simplifies beam delivery, making it ideal for laser pumping, industrial thermal processing, optical sensing and other high-power infrared optical applications.
Specifications:
Item No.:FC1550DZ100
| Optical | Typical Value |
| Center Wavelength |
1550nm±20nm |
| Output Power | 100W |
| Working Mode | CW |
| FWHM | <15nm |
| Fiber | |
| Fiber Core |
400um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | Bare |
| Electrical | |
| Threshold Current Ith | 2A |
| Operating Current Iop | 16A |
| Operating Voltage Vop | 40V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |

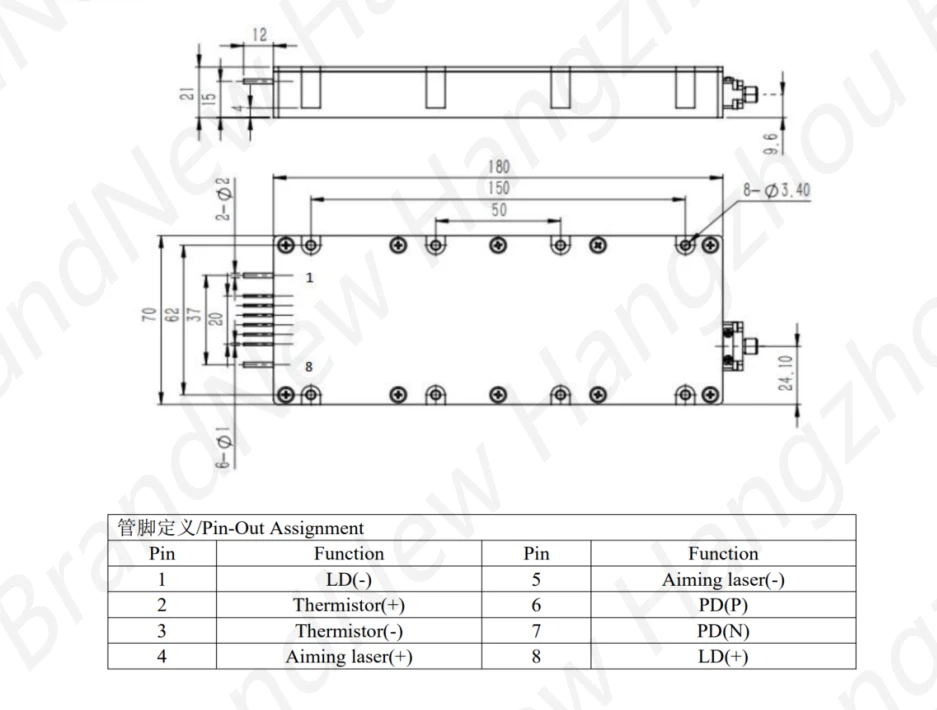

Drawing:
