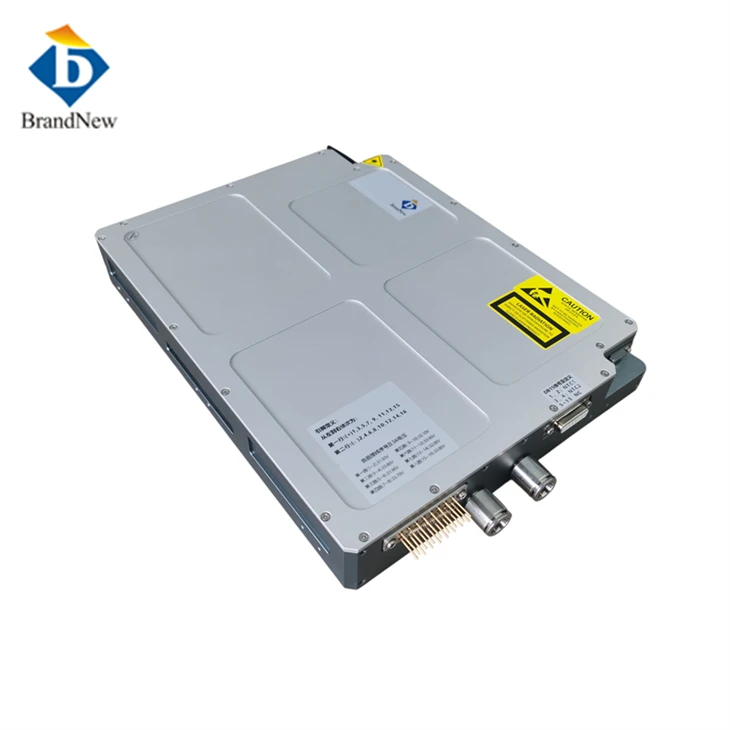

200W 450nm Diode Laser for Material Processing
Features:
- 200W ultra-high power, 450nm bright blue wavelength
- 200um fiber core + SMA905 connector, low optical loss
- Industrial-grade heavy-duty thermal design
Applications:
- Laser Welding: High-precision welding for metal thin sheets, electronic components, alloy workpieces
- Laser Cladding: Surface hardening, wear-resisting cladding and repair for industrial metal parts/molds
- 3D Printing: Core light source for high-speed metal/ceramic blue laser 3D printing equipment
- High-precision Material Processing: Auxiliary cladding/welding for aerospace
This high-performance 200W 450nm fiber coupled diode laser is optimized for laser welding, cladding and 3D printing scenarios, boasting 450nm high-energy-density blue output and 200um fiber core for stable beam transmission with low optical loss. Its industrial heavy-duty thermal design ensures reliable long-time continuous operation under high-load processing conditions, perfectly matching the high-demand working requirements of welding/cladding/3D printing. The standard SMA905 plug-and-play interface enables fast secondary integration with various industrial processing systems, making it the core light source for high-precision, high-efficiency laser material processing equipment in automotive, aerospace, mold manufacturing and 3D printing industries.
Spec sheet:
Item No.: FC450DL200
|
Optical |
Typical Value |
|
Center Wavelength λ |
450nm |
| Wavelength Tolerance | ±15nm |
|
Output Power |
200W |
|
Spectral Width FWHM |
6nm |
|
Electrical |
|
|
Operating Current Iop |
2.5A |
|
Threshold Current Ith |
0.3A |
|
Operating Voltage Vop |
50V |
|
Fiber |
|
|
Fiber Core |
200um |
|
Fiber Numerical Aperture |
0.22NA |
|
Fiber Length |
1m |
|
Fiber Connector |
SMA905 |
|
Thermal |
|
|
Operating Temp. |
15~35℃ |
|
Storage Temp. |
-20-70℃ |
|
Wavelength Temp. Coefficient |
0.3nm/℃ |
Drawing:
