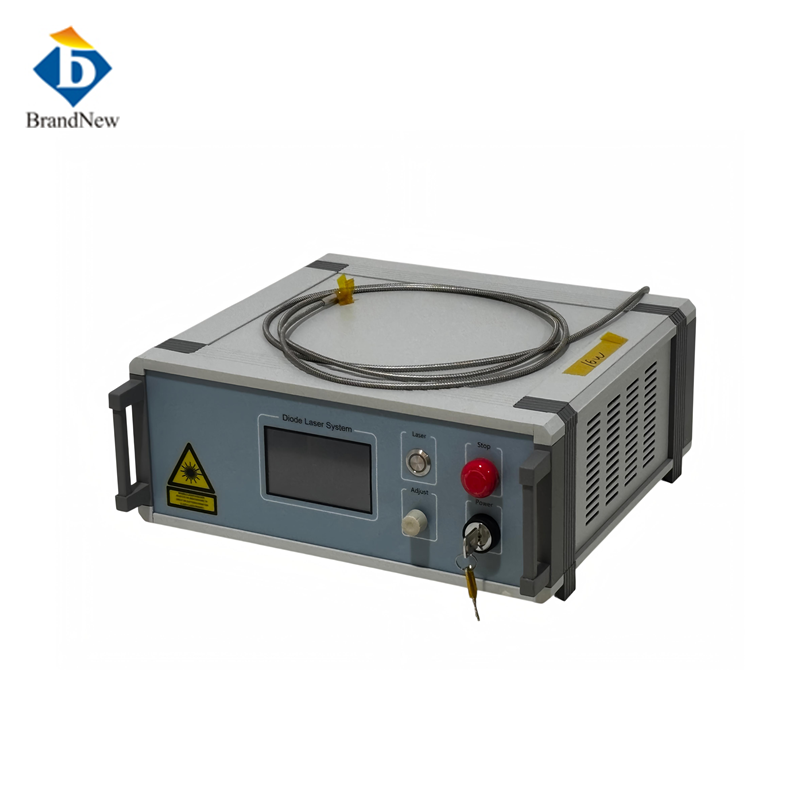

638nm 16W Fiber Coupled Diode Laser System
Features:
- 16W CW output at 638nm red wavelength 105um fiber core
- High-quality fiber-coupled design with low insertion loss
- Industrial-grade thermal management and reliable packaging
Applications:
- Laser Marking & Engraving: Ideal for high-contrast marking of metal surfaces (such as anodized aluminum, stainless steel) and plastic components. .
- Biomedical & Aesthetic Treatment: Used in professional medical aesthetic equipment for skin rejuvenation, hair removal, and vascular lesion treatment..
- Industrial Inspection & Alignment: Applied to industrial positioning systems, machine vision inspection. The visible red beam enables real-time target alignment, supporting automated production lines and robotic guidance.
Item No: FC638YT16

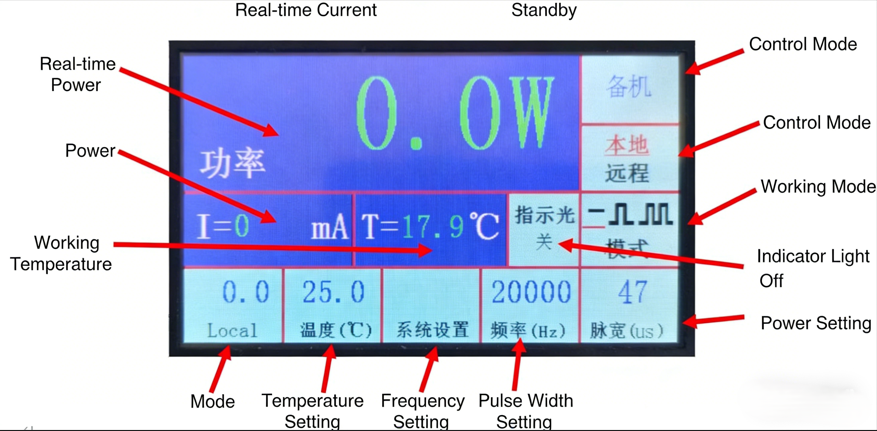

Touchscreen Display and Function Description：
(1) Real-time Power: Displays the laser's output power in real time.
(2) Operating Current: Displays the laser's operating current.
(3) Operating Temperature: Displays the laser's operating temperature; if the temperature becomes either too high or too low, an alarm will be displayed within the operating status area of the screen.
(4) Pilot Beam On/Off: Enables or disables the pilot beam (this is an optional feature; please refer to the contract terms for specific details).
(5) Operating Mode: Offers a choice of three modes: Continuous, Pulse, and Single Pulse.
(6) Pulse Width Setting: Allows for the setting of the pulse width when operating in Pulse or Single Pulse mode. This setting is disabled when operating in Continuous mode.
(7) Frequency Setting: Allows for the setting of the frequency when operating in Pulse or Single Pulse mode. This setting is disabled when operating in Continuous mode.
(8) Temperature Setting: Allows setting of the laser's operating temperature.
(9) Power Setting: Allows setting of the operating power.
(10) Operating Status: Displays the laser's current operating status; in the event of a laser fault, the specific fault type is displayed in this area.
(11) System Settings: Click this button to access the System Settings interface.
(12) Control Mode: Allows selection between Local Control (touchscreen control) and Remote Control (RS-232 and I/O control).
