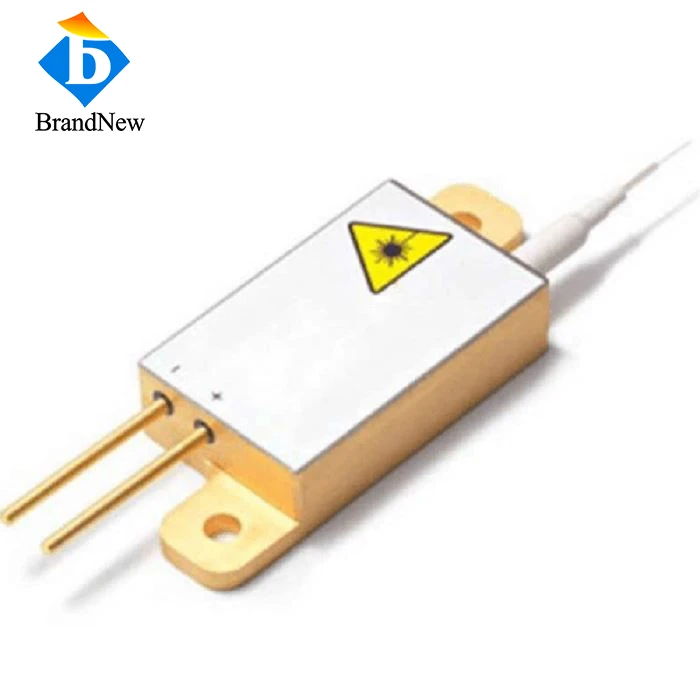

780nm 6W Fiber 105um Coupled Diode Laser
Features:
1. 780nm 6W stable CW output, low power fluctuation.
2. 105μm with high coupling efficiency, uniform beam energy.
3. Mature structural design, excellent heat dissipation.
Applications:
1. Raman Spectroscopy: Excellent excitation light source for material analysis, chemical detection.
2. Fiber Laser Pumping: Serves as pump source for small-power fiber lasers and amplifiers.
3. Industrial Positioning & Illumination: Applied for equipment alignment, workpiece inspection and low-light auxiliary lighting.
4. Optical Experiments & Instrument Calibration: Used for laboratory optical research.
Data Sheet
Item No: FC780DL6
| Optical | |
| Center Wavelength | 780nm |
| Wavelength Tolerance | ±10nm |
| Spectrum Width FWHM | <7nm |
| Output Power | 6W |
| Fiber | |
| Fiber Core | 105um |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Fiber Numerical Aperture | 0.22NA |
| Electrical | |
| Operating Current Iop | 5A |
| Threshold Current Ith | 1A |
| Operating Voltage Vop | 4V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |

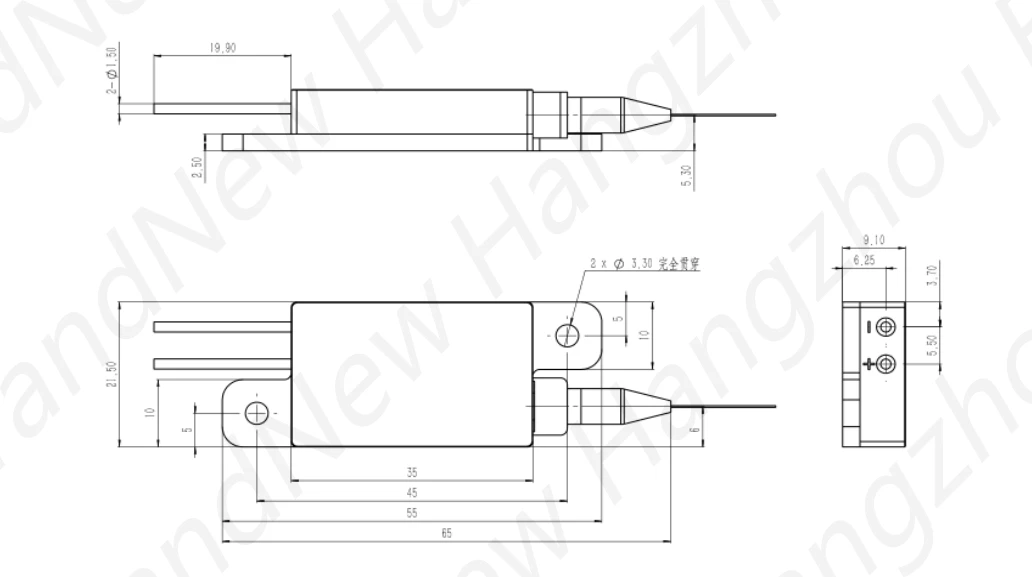

Drawing:
