1720nm 15W Fiber Coupled Diode Laser With Detachable

1720nm 15W Fiber Coupled Diode Laser With Detachable

Item No.:FC1720CB15
Send Inquiry
Chat Now
Description

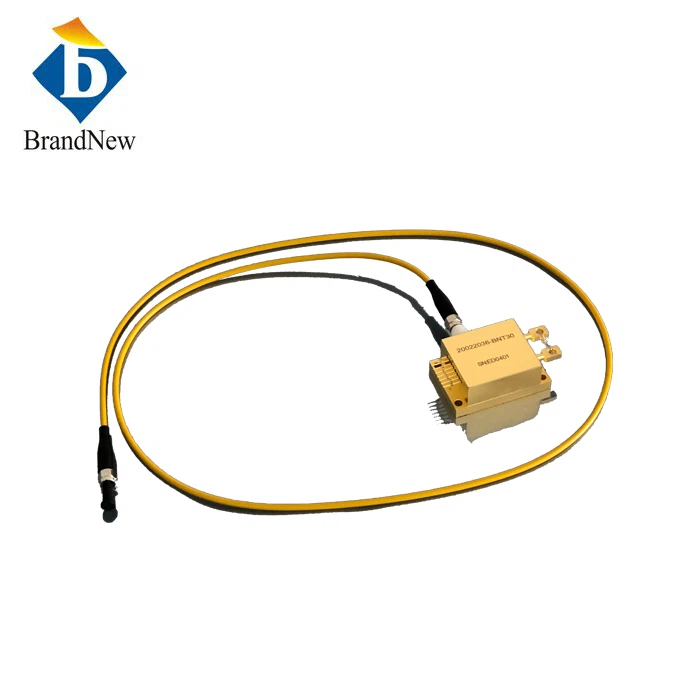

1720nm 15W FC Diode Laser With Detachable



The fiber-coupled laser diode adopts a compact design to provide user convenience while taking up minimal space. The optical components used in the module are precisely machined and carefully aligned to couple the beam into the optical fiber with high accuracy.

The 1720nm 15W FC diode laser adopts a detachable solution, which is ideal for laser marking, cutting, welding and other applications that require high power output for high speed and precise performance.

logo 2

Feature:

  • The technological innovation that is revolutionizing the medical laser industry.
  • Superior precision, versatility and user-friendly interface that
  • Integrated into medical devices and systems
  • Delivering unprecedented efficiency and effectiveness.

Application:

  • Medical field
  • Cosmetic field



Item No.: FC1720CB15

Optical

Typical Value

Center Wavelength λ

1720nm±20nm

Output Power

<15w

Working Mode

CW/QCW

Fiber

Detachable

Fiber Core

400um

Fiber Numerical Aperture

0.22NA

Fiber Length

~1m/0.9mm

Fiber Connector

SMA905

Electrical



Operating Current Iop

11A

Threshold Current Ith

1A

Operating Voltage Vop

12V

Thermal



Storage Temperature

-25~70℃

Test Temperature

25℃

Drawing:

product-527-505
