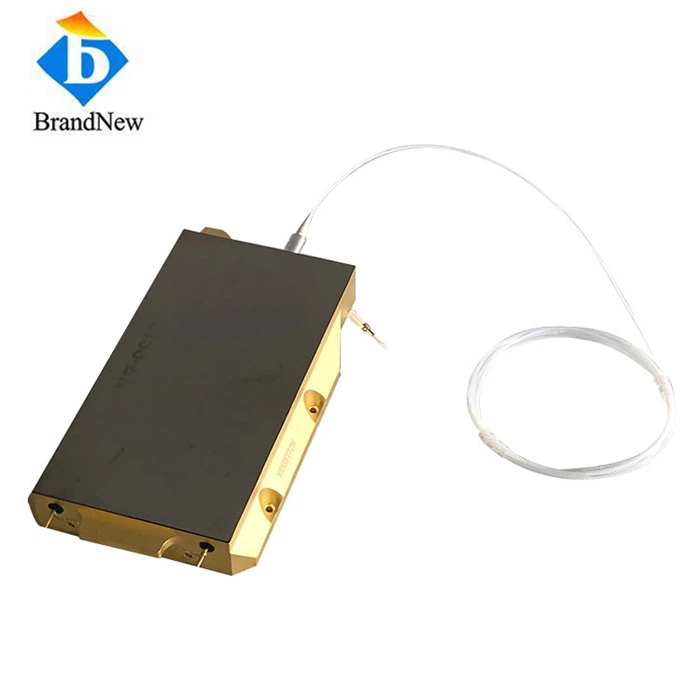

175W 878.6nm Fiber Coupled Laser Diode for Solid-state Laser Pumping



600W 976nm High Power Fiber Coupled Diode Laser



Product Description

Brandnew's line of 878.6 nm fiber-coupled diode lasers provides a complete pumping solution for Vanadate-based solid-state lasers. Brandnew's wavelength-stabilized diodes are differentiated by an unmatched level of spectral purity and stability. We offer an ideal combination of power, reliability and form factor with solutions ranging from 30 Watts to 175 Watts maximum fiber-coupled output power. At Brandnew, we manufacture to rigorous telecom-grade standards in the world's largest high power diode fab. Each wafer is individually qualified, which sets Brandnew apart from alternative industrial pump products using short-lived diode bars and bar-stack technologies. Brandnew's line of 878.6 nm fiber-coupled diode lasers becomes the new de-facto standard for Vanadate-based solid-state laser pumping.

Features:


878.6 ± 0.5 nm Center Wavelength

Wavelength-stabilized Across Wide Current Range

175 W Maximum Output Power at 10 Amperes

High (99% power-in-band) Spectral Purity

Typical Wallplug Efficiency >50%

200 μm Fiber Pigtail (400 μm option) SMA-Connector

Compact Fiber-coupled Package

Dichroic Filter Option for Back-reflection Protection

modular-1



Data sheet

Item No.: FC8786DL175

Optical
Center Wavelength 878.6nm
Wavelength Tolerance ±0.5nm
Output Power  175W
Fiber
Fiber Core Diameter 200um
Fiber Numerical Aperture 0.22NA
Fiber Length 1.5m, can be customized
Fiber Connector SMA905 or Bare
Electrical
Operating Current Iop 10A
Threshold Current Ith 1A
Operating Voltage Vop 48V
Thermal
Operating Temp. 20~30℃
Storage Temp. -20~70℃
Wavelength Temp. Coefficient ~0.02nm/℃
