500mW 976nm FBG Fiber Coupled Laser Diode

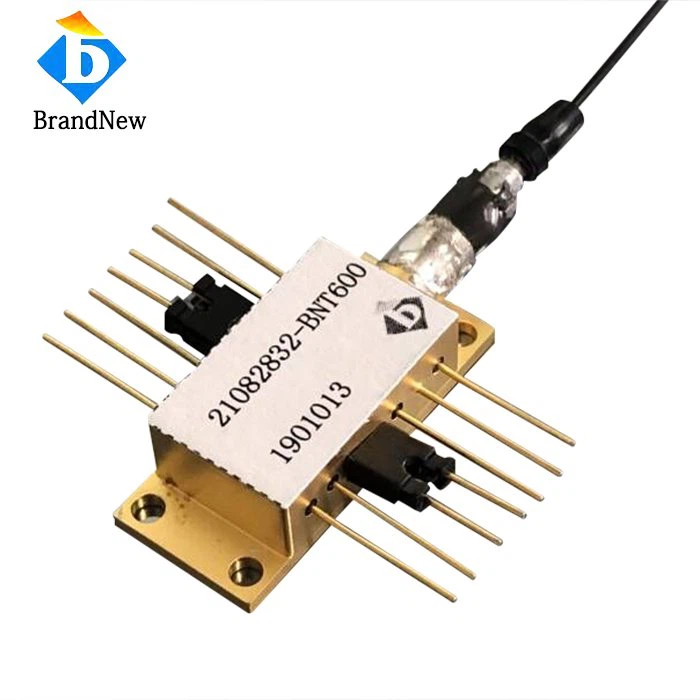

500mW 976nm 14pins butterfly FBG Fiber Coupled Laser Diode

The full name of FBG is Fiber Bragg Grating, that is a grating with periodic distribution of spatial phase formed in the fiber core. The essence of its function is to form a narrow-band (transmission or reflection) filter or reflection mirror in the fiber core. Taking advantage of this feature, many unique optical fiber devices can be fabricated. These devices have a wide range of reflection bandwidth, small additional loss, small size, easy coupling with optical fibers, compatibility with other optical devices, and a series of excellent performances such as being unaffected by environmental dust. At present, the applications are mainly concentrated in the field of optical fiber communication and optical fiber sensor (displacement, velocity, acceleration, temperature measurement).

FBG fiber coupled laser diode adopts FBG frequency stabilization technology to output narrow linewidth laser. The 14-pin butterfly package has strong applicability and can be used with most diode drivers on the market.

Main Features:

Center wavelength 976nm

Fiber Hi1060

Output Linewidth < 1 MHz

Stability of wavelength temperature 0.01nm/℃

14-pin butterfly package

Applications:

Precision measurement

Environmental monitoring

Optical Metrology

Alternative to HeNe Lasers

Data Sheet:

Item No:FC976SM500

Item name: 500mw 976nm single model FBG fiber coupled laser diode

Package Drawing:
