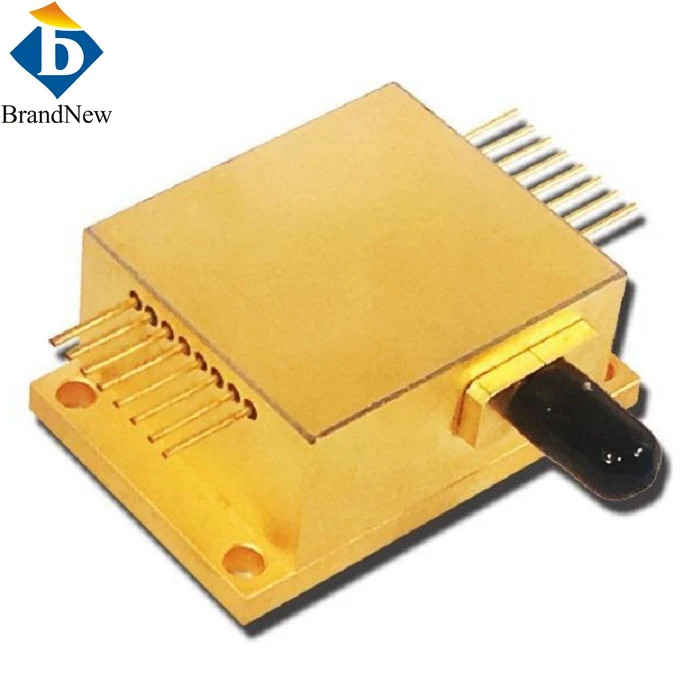

10W 980nm Fiber Coupling Detachable Laser For Medical
This medical dedicated 10W 980nm fiber coupled laser adopts detachable fiber design for easy handpiece replacement and sterile clinical operation. With stable 10W CW infrared output and tissue-selective absorption characteristics, it meets strict safety and reliability standards of medical optoelectronic devices. Widely applied in minimally invasive surgery, dental therapy, rehabilitation physiotherapy and medical aesthetic equipment.
Features:
- 980nm near-infrared wavelength, stable 10W CW output.
- Detachable design fast for replacement.
- High coupling efficiency, uniform energy distribution inside fiber.
Applications:
- Minimally Invasive Surgical Treatment Venous varicose ablation, dermatological lesion cutting, otolaryngology soft tissue resection, precise minimally invasive hemostasis surgery.
- Dental Laser Therapy Periodontal inflammation treatment, gum cutting, dental cavity disinfection, tooth whitening auxiliary light source.
- Rehabilitation & Deep Tissue Physiotherapy Deep infrared pain relief, swelling elimination, soft tissue injury rehabilitation physical therapy equipment.
Specification
Item Number: FC980CB10
| Optical | |
| Center Wavelength 1 | 640nm/5mW |
| Center Wavelength 2 | 980nm/10W |
| Working Mode | CW |
| Fiber | Detachable |
| Fiber Core | 200um |
| Fiber NA | 0.22NA |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Ith | 1~18A |
| Threshold Current Ith | 0.5~2A |
| Operating Voltage Vop | 1.6~3V |
| PD | Optional |
| Thermistor | Optional |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
Package Drawing and Pin Functions:
