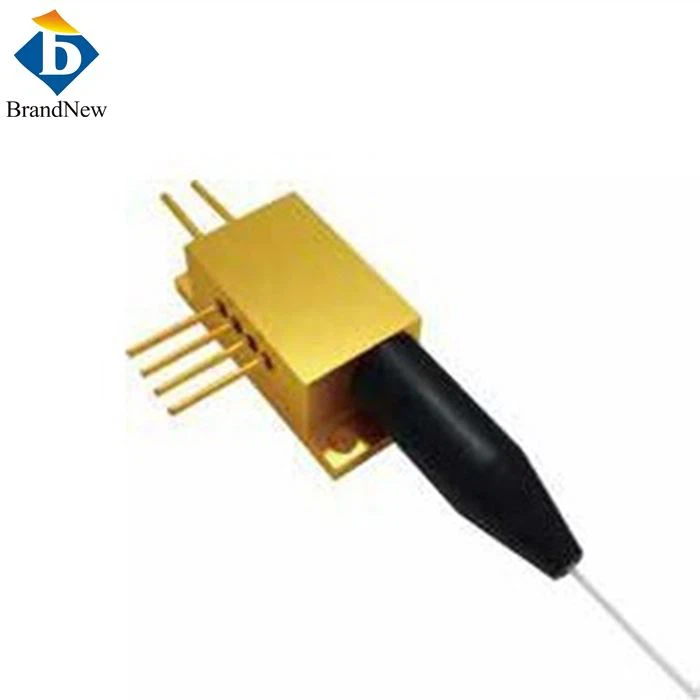

10W 980nm Fiber Laser Diode With PD Thermistor
Quick details:
High output power High efficiency
Functions optional: PD Thermistor
Fiber length can be customized
Widely used in Pump source, laser processing, Research applications
Data sheet
Item No.: FC980DL10
Optical | |
Center Wavelength | 980±10nm |
Output Power | 10W |
Spectral Width FWHM | 6nm |
Slope Efficiency | 0.9W/A |
Fiber | |
Fiber Numerical Aperture | 0.22NA |
Fiber Core Diameter | 105um |
Fiber Length | 1~2m |
Fiber Connector | FC/PC，ST，SMA905 |
Electrical | |
Operating Current Iop | 12A |
Threshold Current Ith | 0.7A |
Operating Voltage Vop | 2V |
PD | ＜2000μA |
Thermistor Rt（kΩ/β（25℃）） | 10±5%/3450 |
Thermal | |
Operating Temperature | 20~30℃ |
Wavelength Temperature Coefficient | 0.3nm/℃ |
Detailed measurement:
![WU0KZ)WAQE%]4DMIW{K%1{8](/Content/uploads/202098745/202004061450317127176892c945d2a409f74080ae06a7.png)
