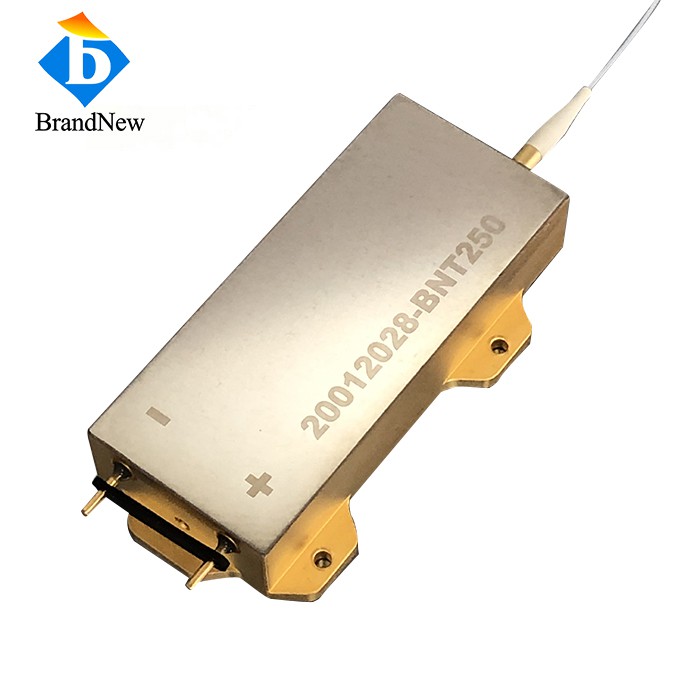

900W 976nm Fiber Coupled Diode Laser
Feature:
- 900 Watts Output Power
- High Reliability Multi-Single Emitter Design
- Bare end fiber connector
-
high efficiency and convenient packaging
-
high stability and superior beam quality
Application:
- Pumping
- Medical/Hair Removel
- Research
- Industry
- Telecommunication
Brandnew introduces its latest breakthrough: an advanced high-power fiber-coupled diode laser designed to transform laser pumping, cutting and welding applications.
Precision cutting, powerful welding, and high-speed pumping all ensure stable and reliable operation, maximizing uptime and increasing throughput.
This model features a 220μm fiber core, 0.22 numerical aperture (NA) and 1m fiber length. Optimized light transmission ensures precise, uniform energy distribution over the target surface.
Whether you're looking to increase productivity, enhance precision, or streamline your manufacturing workflow, Brandnew's fiber-coupled diode lasers are designed to meet the most demanding challenges.
Item NO.: FC976DL900
Item name： 976nm 900W fiber coupled diode laser
| Optical | |
| Center Wavelength | 976nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 900W |
| Working Mode | CW |
| Fiber | |
| Fiber Core | 220um |
| Fiber Numerical Aperture |
0.22NA |
| Fiber Length | 1m |
| Fiber Connector | Bare end |
| Electrical | |
| Operating Current Lop | ＜30A |
| Threshold Current Lth | 2A |
| Operating Voltage Vop | 60V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
Product drawing:
Principle of Metal and Plastic Welding Using Diode Lasers：
1. Metal Welding (Laser Metal Welding):
Laser welding of metals is based on the principle of localized heating and melting. When a high-power fiber-coupled diode laser irradiates the metal surface, it delivers intense energy to a small, focused area, rapidly heating it above its melting point. The molten material from the two parts fuses together, and once cooled, forms a strong weld joint.
Key characteristics:
- Deep penetration, narrow welds
- Minimal heat-affected zone (HAZ)
- Suitable for stainless steel, carbon steel, aluminum, copper, etc.
- Supports continuous wave (CW) or quasi-continuous wave (QCW) operation
2. Plastic Welding (Laser Plastic Welding):
In plastic welding, the laser passes through a transparent upper layer and is absorbed by the underlying darker or absorbent layer. The absorbed energy heats the material at the interface, causing it to melt and fuse under pressure. This is often called through-transmission laser welding (TTLW).
Key characteristics:
- Non-contact, clean welding process
- High precision, no need for filler materials
- Ideal for medical devices, automotive parts, electronics enclosures, etc.
- Works well with thermoplastics like ABS, PC, PP, and PA
Diode lasers are ideal for both processes because of their:
High electrical-to-optical efficiency
Compact size
Ability to be easily integrated with automation systems
