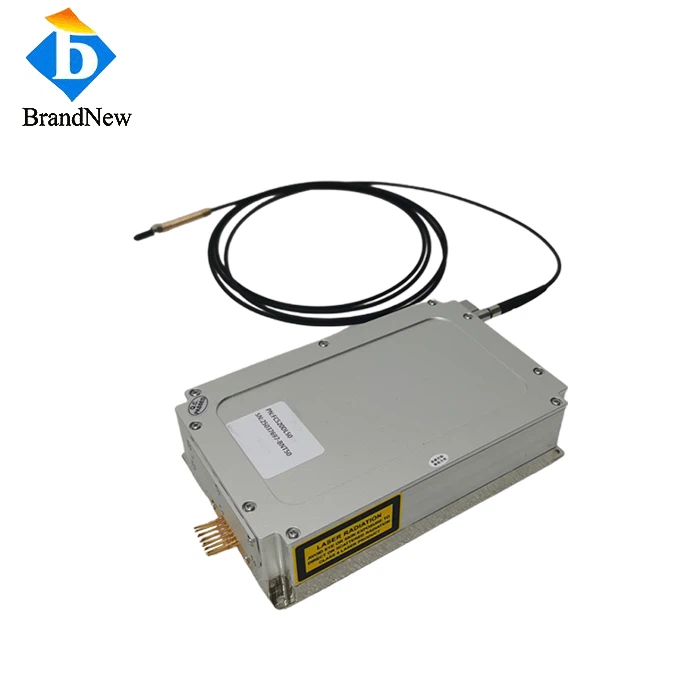

1940nm SMA905 Detachable Fiber Coupled Laser Diodes
Features:
- 640/1940nm Dual-Wavelength, stable CW
- 200μm fiber core + SMA905 connector
- Long-term industrial operation
- Easy system integratio
Applications:
- Gas Sensing: Trace gas detection for environmental & industrial monitoring
- Medical & Biomedical: Soft tissue treatment with high water absorption
- Material Processing: Precision cutting/welding of polymers, textiles & composite materials
- Scientific Research: Mid-infrared optical experiments, laser-matter interaction studies
1940nm SMA905 detachable fiber coupled laser diodes feature flexible detachable fiber design and stable mid-infrared output. Ideal for gas sensing, medical therapy, precision material processing and scientific research, with convenient maintenance advantage from detachable fiber structure.
Data Sheet
Item No: FC1940CB10
|
Optical |
|
|
Center Wavelength 1 |
640nm/0.2W |
| Center Wavelength 2 | 1940nm/10W |
| Working Mode | CW |
|
Fiber |
Deatachable |
|
Fiber Core |
200um |
|
Fiber Numerical Aperture |
0.22NA |
|
Fiber Length |
1m |
|
Fiber Connector |
SMA905 |
|
Electrical |
|
|
Operating Current Iop |
10A |
|
Threshold Current Ith |
2A |
|
Operating Voltage Vop |
23V |
| Aiming Beam | Optional |
| NTC | Optional |
|
Thermal |
|
|
Test Temperature |
25℃ |
|
Storage Temperature |
-30-70℃ |
Drawing:
