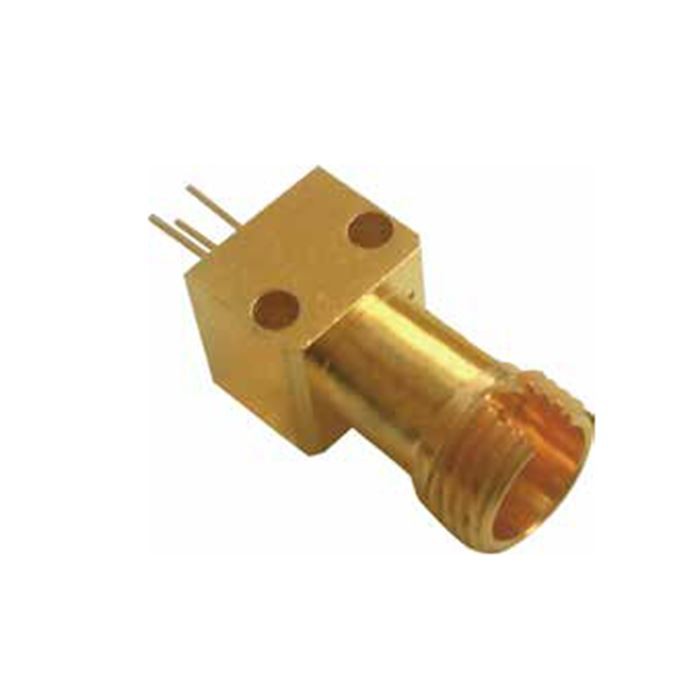

350mw 405nm Fiber Coupled Diode Laser



Overview



Quick details:

405nm, CW Mode, Coaxial Package, Fiber Receptacle Optional

Special design for printing, medical, spectral analysis, research applications

Safety:

The beam emitted by this 405nm laser diode is potentially harmful to the human eye. The following precautions should be taken: When this product is being operated, the laser beam should not be viewed either directly or through a lens, microscope or optical fibers. When operating this product, proper laser safety glasses should be worn at all times. Appropriate measures, such as fail-safe design and redundant design should be taken to ensure reliability and safety when this product is used for equipment which demands high reliability and safety in function and precision.

12





Specification:

Item No.: FC405DL350

Optical
Center Wavelength 405±10nm
Output Power  350mW
Working Mode CW
Spectral Width FWHM <6nm
Slope Efficiency 1.5W/A
Fiber
Fiber Core 105um
Fiber Numerical Aperture 0.22NA
Fiber Connector FC/PC
Electrical
Operating Current Iop 0.4A
Threshold Current Ith 0.2A
Operating Voltage Vop 5.5V
Thermal
Operating Temperature 20~30℃
Storage Temperature -20-70℃
Wavelength Temp. Coefficient <0.1nm/℃

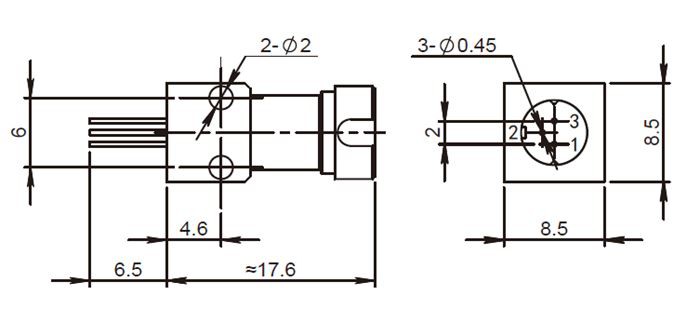

Drawing:

Y4NH)A8R{4_[$_TD}0`[A@9
