Description

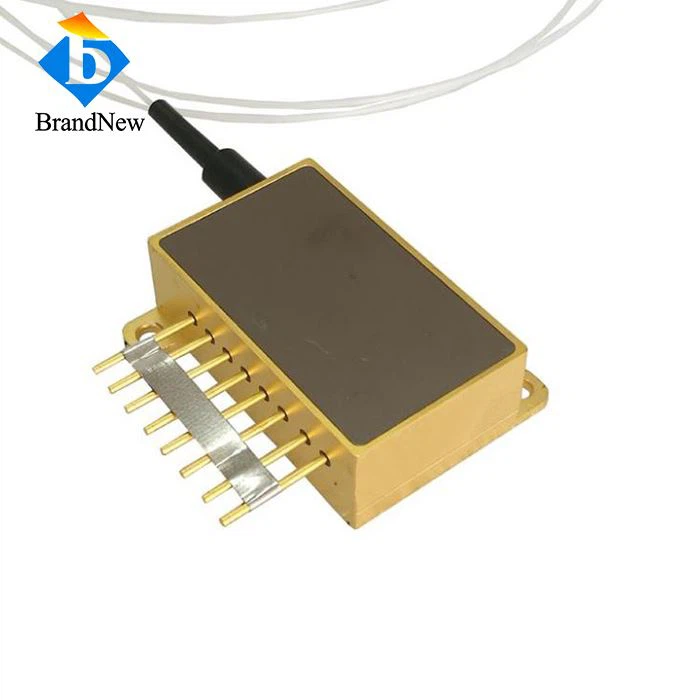

30W 1470nm Fiber Coupled Diode Laser
Key features:
High coupling efficiency
High brightness
Sealed housing
Standard fiber coupling (HP-SMA) for 400µm NA 0.22
Aiming Beam, PD, Thermistor functions optional
Applications: Medical (Dental, Dermatology) Pumping
Spec sheet
Item No.: FC1470DL30
Optical | Typical Value |
Center Wavelength | 1470±20nm |
Output Power | 30W |
Working Mode | CW |
Fiber | |
Fiber Numerical Aperture | 0.22NA |
Fiber Core | 400um |
Fiber Length | 1~2m |
Fiber Connector | SMA905 |
Electrical | |
Operating Current Iop | 9A |
Threshold Current Ith | 0.5A |
Operating Voltage Vop | 26V |
Thermal | |
Operating Temperature | 15~55℃ |
Storage Temperature | -30~70℃ |
Package Drawing
