400um 25W 808nm Fiber Coupling Laser Diodes
25W 808nm Fiber Coupling Laser Diodes with 400um fiber core. The output power of this product is 25W, which is very suitable for laser plastic welding, soft welding, laser lighting, laser curing, etc.
Other output power and wavelength also available. Our researchers constantly improve and innovate the processing technology in the production process based on professional knowledge. We also continue to develop new products to meet the special needs of customers.
Application:
YAG Fiber Laser
Biomedical imaging systems
Medical diagnosis
Spectrum analysis
DNA sequency
Data Sheet
Item No: FC808DL25
Item Name: 400um Fiber Coupling Laser Diodes
| Optic | |
Center Wavelength | 808nm |
Wavelength Tolerance | ±10nm |
Output Power | 25W |
Fiber | |
Fiber Core | 400um |
Fiber Numerical Aperture | 0.22NA |
Fiber Length | 1-2m |
Fiber Connector | SMA905 |
Electrical | |
Operating Current Iop | 8.8A |
Threshold Current Ith | 1.8A |
Operating Voltage Vop | 2.2V |
Thermal | |
Operating Temperatur | 15~35℃ |
Storage Temperature | -20-70℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |

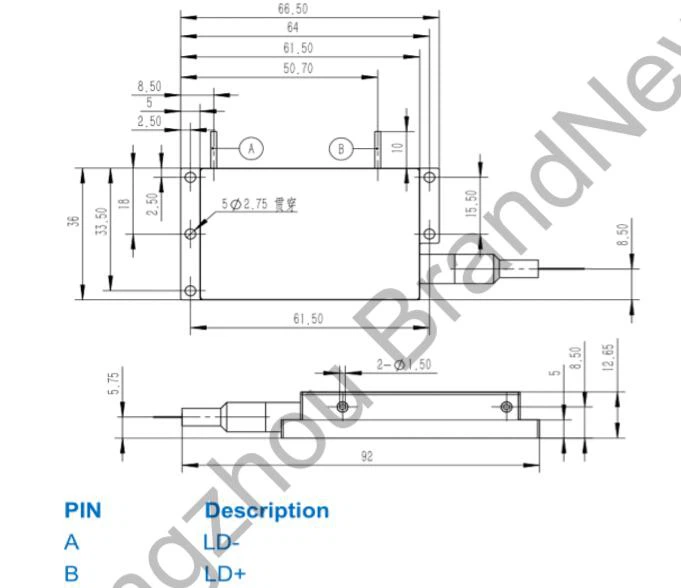

Drawing:
Packing:
1. What payment methods do you support？
T/T and Western Union, For your Choice
2. How long can I receive the package？
Normally 1-2 Weeks FedEx,DHL Express,UPS,TNT
3. How long is our warranty time?
1 year warranty time
