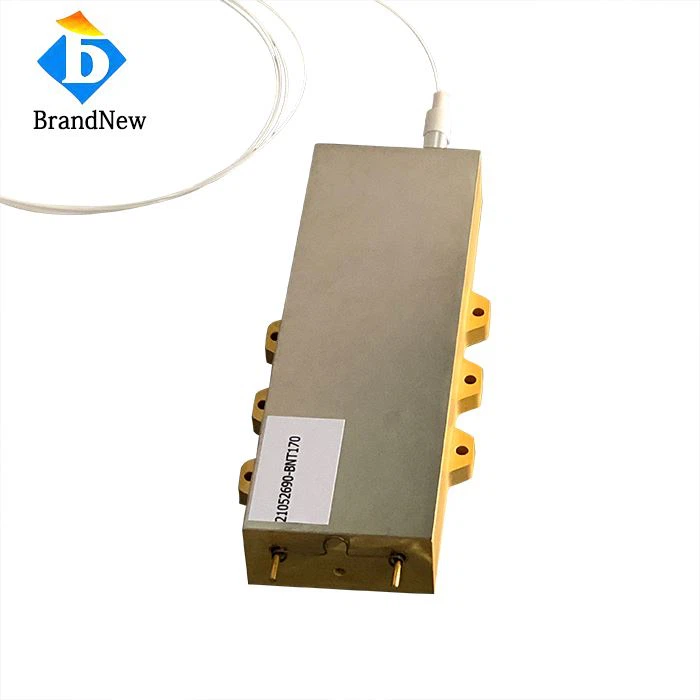

50W 1470nm Fiber Coupled Diode Laser Module
These lasers have high coupling efficiency, thermal interface by base-plate, are single wavelength, and come with a straight fiber output of (0°) or 90°. They also come with a user exchangeable blast shield and have scalable output power. Optional accessories include an integrated NTC temperature sensor, pointer laser, monitor photo diode, and fiber detection sensor.
Features
1470nm wavelength
Burn-in tested single emitters
Fiber: 105 µm, 200 µm, or 400µm
NA 0.22, SMA905
Integrated temperature sensor
Sealed housing
Temperature sensor
Application:
Raman Excitation Source
Flow Cytometry
Semiconductor Processing
Real-time Process Control
Metrology
Data sheet
Item No.: FC1470DL50
|
Optical |
|
|
Center Wavelength |
1470nm |
|
Wavelength Tolerance |
±20nm |
|
Output Power |
50W |
| Fiber | |
|
Fiber Core Diameter |
400um |
|
Fiber Numerical Aperture |
0.22NA |
|
Fiber Connector |
SMA905 |
|
Electrical |
|
|
Operating Current Iop |
55A |
| Operating Voltage Vop |
4V |
| Aiming Beam | Available |
|
Thermal |
|
|
Test Temperature |
25℃ |
|
Storage Temperature |
-20-70℃ |
| Wavelength Temperature Coefficient | 0.35nm/℃ |
Drawing
