Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced eye-safe 200uj 1535nm diode pumped laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

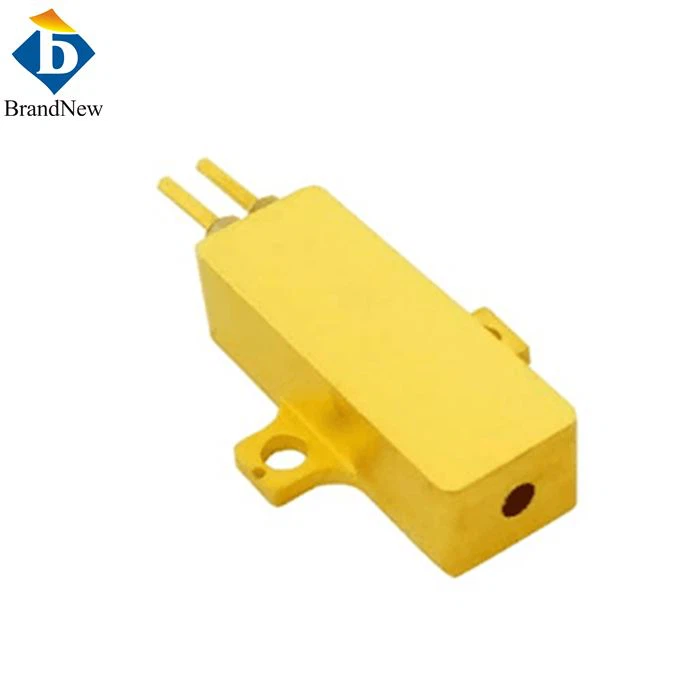

Eye-Safe 200uJ 1535nm Diode Pumped Laser
The technical features of Eye-Safe 200uJ 1535nm Diode Pumped Laser include their optical properties, small size and ruggedness, which make them have great potential in commercial and industrial applications. For example, their small size and low power consumption make them very suitable for use in space-constrained environments, while their ruggedness enables them to work stably for a long time under harsh conditions.
Key features:
Passive Q-Switched, Er:glass
Eye-safe
Extremely light weight
Smallest size in the world
Wide temperature range operation
Applications:
Laser range finding
Military application
Spec sheet:
Item No.: FS1535DL200
| Parameter | Typical |
| Wavelength(nm) | 1535 |
| Pulse Energy(μJ) | 200 |
| Pulse Width(ns) | 5 |
| Beam Divergence(mrad) | <6 |
| Repetition Rate(Hz) | 10 |
| Cooling | Not Required |
| Weight(g) | 9 |
| Laser Size(mm) | 22x8x6 |
| Operational Temperature(℃) | -40~50 |
| Storage Temperatrue(℃) | -40~90 |
Package Drawing
![]FF`_$06EFEKRY}J}FX7B]S](/Content/uploads/202098745/20200827133849ab88d97f41154fac8c466a309fd49dd4.png "product-1-1")
