High Power Fiber Coupled Diode Laser Source
--(808nm up to 180W, 915nm up to 750W, 940nm up to 200W, 976nm up to 320W)
overview
Features:
Various wavelength and power optinal
High brightness and high reliability
Cost effective package and simplified thermal management
It is an ideal solution for applications requiring high power and high brightness from a small form factor diode laser.
Key Applications:
A fiber-coupled laser diode is an incredibly efficient tool for a wide range of applications, including medicine, defense, and industrial manufacturing.
Data sheet of hot product
Item no.: FC915LD300
|
Optical |
Typical Value |
|
Center Wavelength |
915±10nm |
|
Output Power |
300W |
|
Slope Efficiency |
26.8W/A |
|
Fiber |
|
|
Fiber Core |
200um |
|
Fiber Numerical Aperture |
0.22NA |
|
Fiber Length |
1.5m |
|
Fiber Connector |
Bare |
|
Electrical |
|
|
Operating Current Iop |
13A |
|
Threshold Current Ith |
0.8A |
|
Operating Voltage Vop |
49V |
|
Power Conversion Efficiency |
45% |
|
Thermal |
|
|
Operating Temperature |
15~35℃ |
|
Storage Temperature |
-20-55℃ |

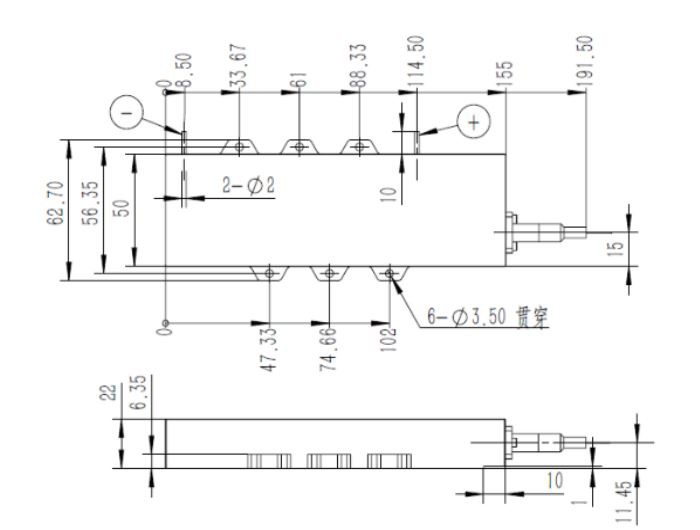

Size
Precautions For The Use
The laser light emitted from this Device is invisible and will harmful to the human eye. Avoid looking directly into the fiber output or into the collimated beam along its optical axis when the device is in operation. Proper laser safety eyewear must be worn during operation.
ESD PROTECTION – Electrostatic discharge is the primary cause of unexpected product failure. Take extreme precaution to prevent ESD. Use wrist straps, grounded work surfaces and rigorous antistatic techniques when handling the product.
