5mW 650nm Single Mode Fiber Coupled Diode Laser
5mW 650nm Single Mode Fiber Coupled Diode Laser is offered in a coaxial package. This laser is coupled to 9 μm fiber, NA 0.15, and terminated with an Bare end connector. These high stability fiber coupled laser diodes are designed and manufactured to meet the most demanding R&D and industrial applications. Proprietary design, packaging, and fiber coupling processes produce laser diodes with very high stability and low noise.
Key fetures:
650nm Pigtailed Diode Laser With SM Fiber
9um Single Mode Fiber
0.15N.A.
Coaxial Package
Built-in PD optional
Application:
Sense
Medical Cure
Scientific Application
Aiming Beam
Data sheet
Item No.: FC650SM0005
|
Optical |
|
|
Center Wavelength |
650nm |
|
Wavelength Tolerance |
±20nm |
|
Output Power |
>5mW |
|
Fiber |
|
|
Fiber Core |
9um |
| Numercial Aperture | 0.15NA |
|
Fiber Connector |
Bare end |
|
Electrical |
|
|
Operating Current Iop |
<180mA |
|
Threshold Current Ith |
80mA |
|
Operating Voltage Vop |
2.4V |
|
Thermal |
|
|
Test Temp. |
25℃ |
|
Storage Temp. |
-40-80℃ |

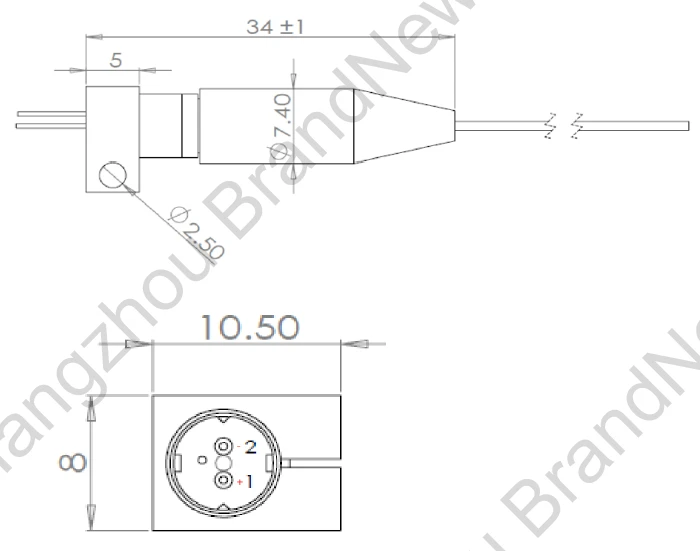

Package size
