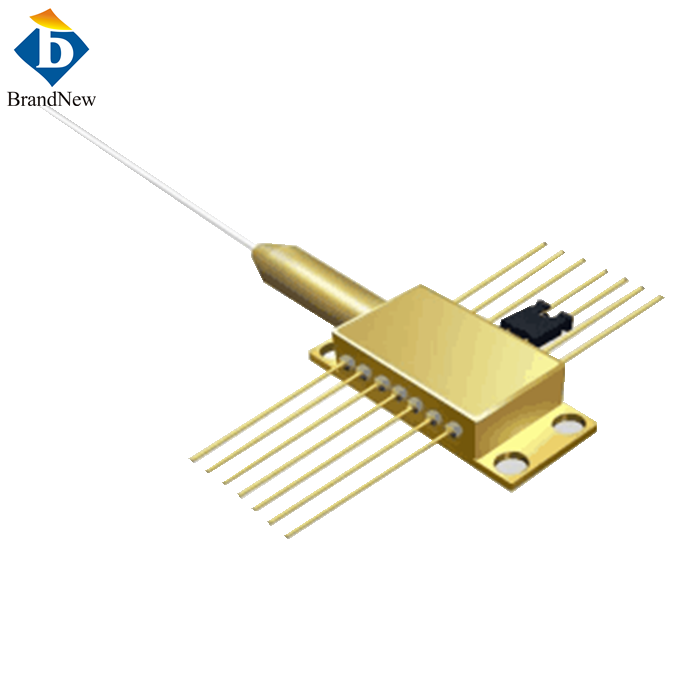

976nm 600mW Butterfly Fiber Coupled Pump Diode Laser
Features:
- 600mW 976nm, high-efficiency pump source for EDFA.
- FBG wavelength locking ensures excellent stability
- unique coupling technology delivers high optical efficiency .
Applications:
- Low-Noise EDFA Design: Ideal for constructing low-noise EDFA modules. The FBG-stabilized wavelength output significantly reduces RIN and wavelength drift, maintaining a low NF and supporting high-sensitivity signal detection.
- DWDM EDFA Systems: Compatible with single-channel and Dense Wavelength Division Multiplexing (DWDM) EDFA architectures..
- CATV Optical Transmission Networks: Applied to CATV distribution systems as a reliable pump for EDFA-based optical transmitters and receivers. .
Data Sheet
Item No: FC976SM06
| Optical | |
| Center Wavelength | 976nm |
| Wavelength Tolerance | ±1nm |
| Output Power | 600mW |
| Fiber | |
| Fiber Core | Hi1060 |
| Fiber Length | >1m/0.9mm Jacket |
| Fiber Connector | FC/APC |
| Electrical | |
| Operating Current Iop | 1000mA |
| Threshold Current Ith | 90mA |
| Operating Voltage Vop | 2.5V |
| Thermistor | Available |
| TEC | Available |
| PD | Available |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -40~80℃ |
Drawing:
