16bars 800W 808nm Diode Laser Bar for Bios Epil 8
Macro channel laser diode stack is excellent both for quality and price. The structure of packaging is flexible and it has no special requirements for water quality. What's more, we've already overcome the shortage of macro channel laser diode bar easily burning. And this model is used for many brands machine supplier, such as Bios,Apolo,pzlaser.......
Main Features:
16 bars, 50w per bar, totally 800W
808nm or triple wave optional
Germany imported laser bar
Au-sn welding,high stability and reliability
Quality warranty is 20 months
Number of shots: >20 millions
Data sheet:
Item No.: WC808VS800S
Item name: 800w 808nm Diode Laser Bar
Optical | |
Center Wavelength | 808nm |
Wavelength Tolerance | ±10nm |
Working Mode | QCW |
Output Power Per Bar | 50W |
Number of Bars | 16 |
| Pulse Width | 1~400ms |
Duty Cycle | 0.1~40% |
Electrical | |
Operating Current Iop | 50A |
Threshold Current Ith | 11A |
Operating Voltage Vop | 28V |
Power Conversion Efficiency | 50% |
Thermal | |
Operating Temperature | 15~30℃ |
Storage Temperature | 0-55℃ |

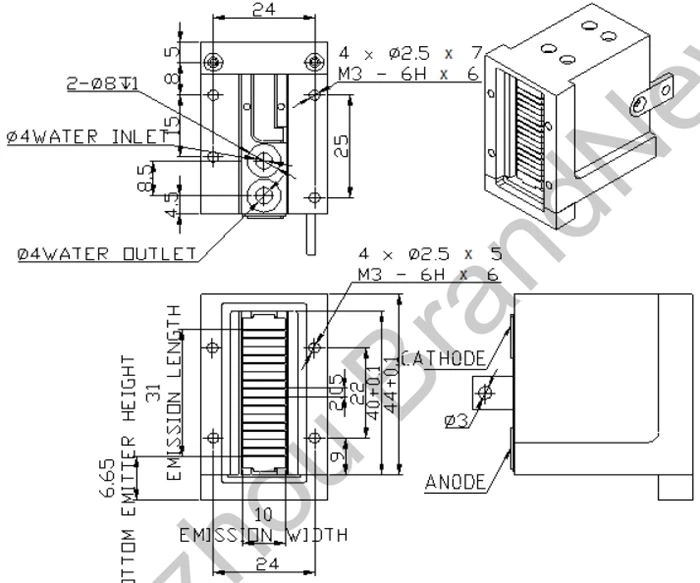

Size Drawing:
