Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 800w 808nm diode laser bar ml aesthetics. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

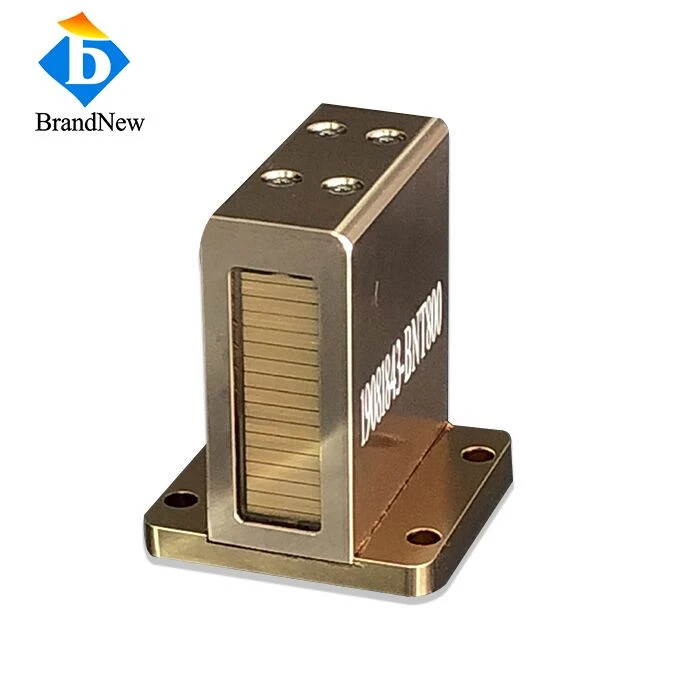

800W 808nm Diode Laser Bar For ML Aesthetics
Features:
- 800W output power, 808nm central wavelength,16 laser bars
- Other wavelength and output power are available
- Hard Solder Assembly Technology, more reliable
- 20 months warranty time
Applications:
- Hair removal machine handle repair
- Skin rejuvenation
- Tattoo removal
Data Sheet
Item No: WC808VS800
Item Name: 800W Diode Laser Bar ML Aesthetics
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 800W |
| Number of Bars | 16 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence (FWHM) | 12Deg |
| Working Mode | QCW |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | ~50A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~28V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0~55℃ |
Drawing:
ML's holistic approach to laser hair removal devices offers more than just a quick fix; it also provides sustainable and long-lasting results that enhance the quality and appearance of the skin. Our 800W stack is tailor-made for ML, which is not only a holistic approach to skin blemishes, but also emphasizes the importance of health. This 800W vertical stack helps clients achieve clear, healthy skin, and also allows them to feel alive in their skin again.
