Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 3 wavelength diode laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

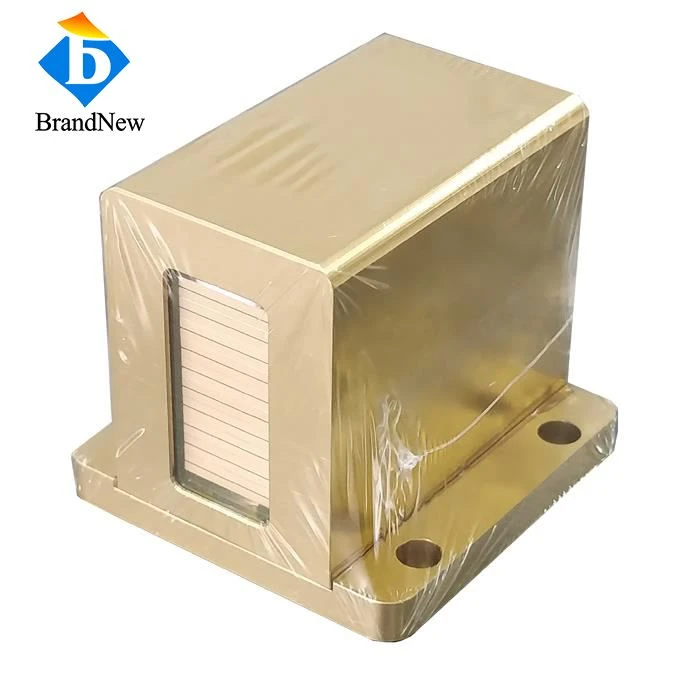

3 wavelength diode laser
Overview
Features:
3 different wavelength combined(755nm+808nm+1064nm) for all skins
755nm: specific effective for blonde hair, fine hair
808nm: golden standard wavelength for all hair types
1064nm: specific effective for dark, tanned skin
Standard size, widely used for most Chinese Hair Removal Machine
Laser bar is imported from Germany, heat-sink is from Japan, with mature mounting technology
Repair service:
If you have basic assembly skills, you can provide us with a front-side emission image of the laser diode to confirm the number of bars present, in addition to specifying the wavelength and required power, then we will offer the same model to you.
If not, you can send the whole handle to us, assembly service is free, you only need to pay the cost of laser stack and shipping.
Specification:
Item Number:WC781VS600
| Optical | |
| Center Wavelength | 755nm,808nm,1064nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 60W |
| Number of Bars | 10 |
| Electrical | |
| Operating Current Iop | ~50A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~19V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temp. | 20~30℃ |
| Storage Temp. | 0-55℃ |
Package Drawing
