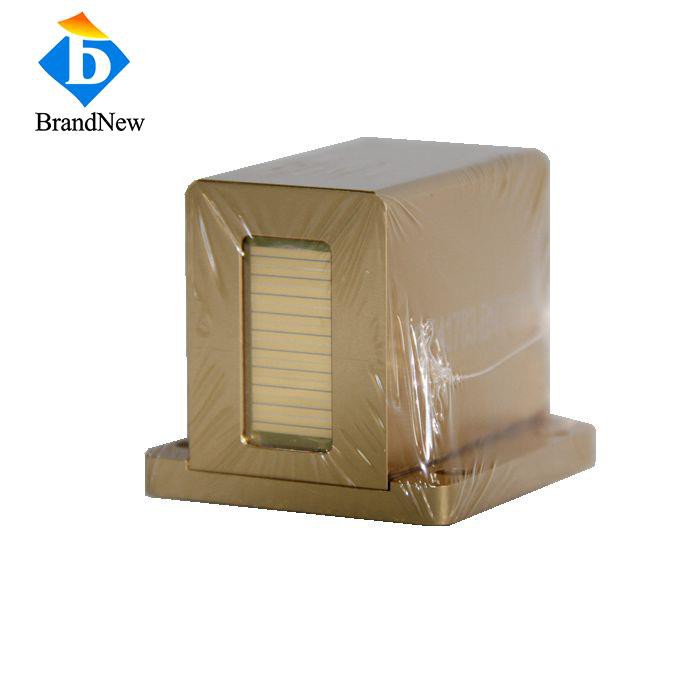

Vertical Diode Laser Array
Vertical Diode Laser Array is like a group of laser diodes working together in a package or array. Vertical Diode Laser Array setup makes the combined laser stronger and more powerful. Vertical Diode Laser Array are important devices that use optical gain media and resonant cavities to produce light. The design of these components is critical to modern lasers.
Quick Details
>Diode laser bar from Germany
>lifetime: over 10000hours
>Typical wavelengths are 755nm, 808nm, 1060nm (others upon request)
>Enclosed package design with window protection
>Special design for diode laser hair removal machine
Data sheet
Item No.:WC808VS600
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 600W |
| Number of Bars | 10 |
| Electrical | |
| Operating Current | ~50A |
| Threshold Current | ~10A |
| Operating Voltage | ~18V |
| Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Package Drawing
