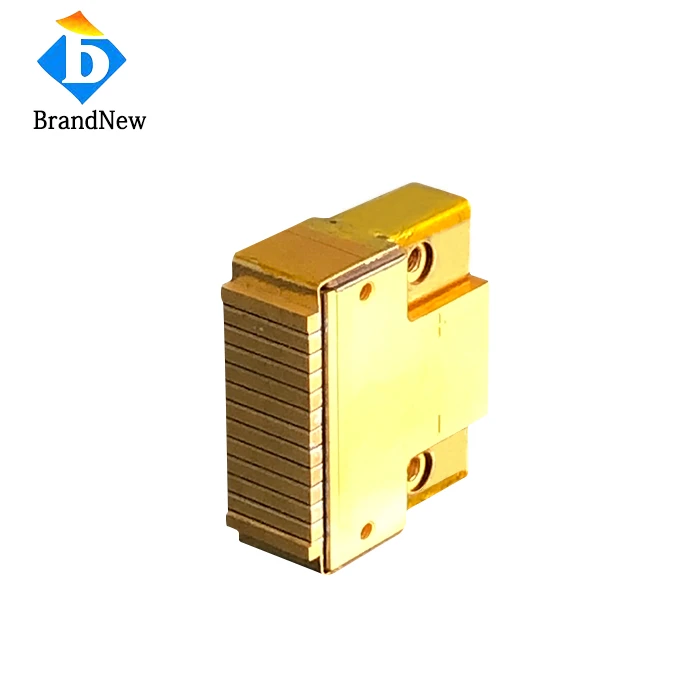

12 Bars Diode Stack For Alma Soprano ICE
Microchannel has a lot of problems from water corrosion, passively cooled is much better. So BrandNew Technology develop this model with passively cooled with a low bar-to-bar pitch to increase brightness.Laser handpiece wavelength 808NM which is suitable for hair removal application
KEY FEATURES:
Compact size
600w or 1200w optional
Ausn soldering Package
Advanced beam conditioning
Low pressure and water flow requirements
Advice for laser machine maintain:
1.Please change filter once for 6 months.
2.Please add DI water to machine, and 1 month change water.
3.Please drain out water from machine if machine long time no working.
4.Please let the machine take a rest for 5 mins after 2 hours working
Data sheet
Item No.:WC808T1200
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 100W |
| Number of Bars | 12 |
| Fast Axis Divergence(FWHM) | 70Deg |
| Slow Axis Divergence (FWHM) | 12Deg |
| Polarization Mode | TE |
| Emitter Size | 10x13.2mm |
| Electrical | |
| Operating Current Iop | 100A |
| Threshold Current Ith | 20A |
| Operating Voltage Vop | 24V |
| Power Conversion Efficiency | 50% |
| Thermal | |
| Operating Temperature | 25℃ |
| Storage Temperature | -40-80℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Package Drawing
