Diode Laser Bars Stack For Apolo Handle

Diode Laser Bars Stack For Apolo Handle

Item No.: WC808VS600
Send Inquiry
Chat Now
Description

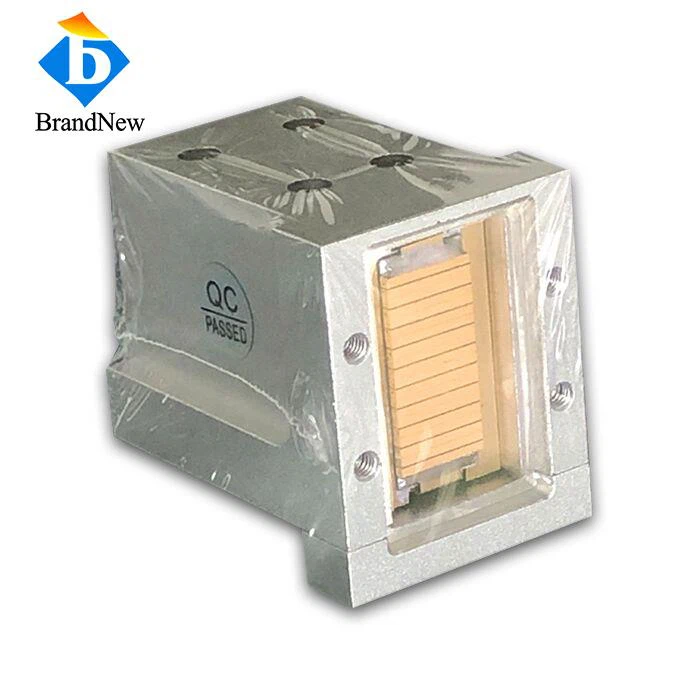

Diode Laser Bars Stack for Apolo Handle



Product Description

Diode Laser Bars Stack for hair removal handle‌ refers to a technology that closely arranges multiple micro lenses in a vertical stacking manner to form a stacking structure. This technology is mainly used in laser processing, laser medical treatment and other fields. For example, the laser stacking for hair removal handle aims to improve the directivity of the light spot and control the divergence angle, thereby achieving a more precise and effective hair removal effect. This technology not only improves the performance of the equipment through conduction cooling and vertical stacking, but also takes a leading position internationally, showing its application potential and advantages in hair removal technology

Quick Details

808nm or triple wavelength 755 808 1064 optional

Germany imported laser bar

Quality warranty is 18 months. No of shots: >50 millions.

PZ Laser


3



Specification

Item No.: WC808VS600

Optical



Center Wavelength

808nm

Wavelength Tolerance

±10nm

Working Mode

QCW

Output Power Per Bar

60W

Number of Bars

10

Bar to Bar Spacing

2mm

Polarization Mode

TE

Duty Cycle

0.1~40%

Electrical



Operating Current Iop

50~60A

Threshold Current Ith

11~17A

Operating Voltage Vop

19~21V

Power Conversion Efficiency

45~48%

Thermal



Operating Temperature

15~30℃

  Storage Temperature

0-55℃




Drawing

{%)EPJ04202661PF$5Z(K9U

`ML$E6G_CQ46L%P}5Q_X`F3
