Description

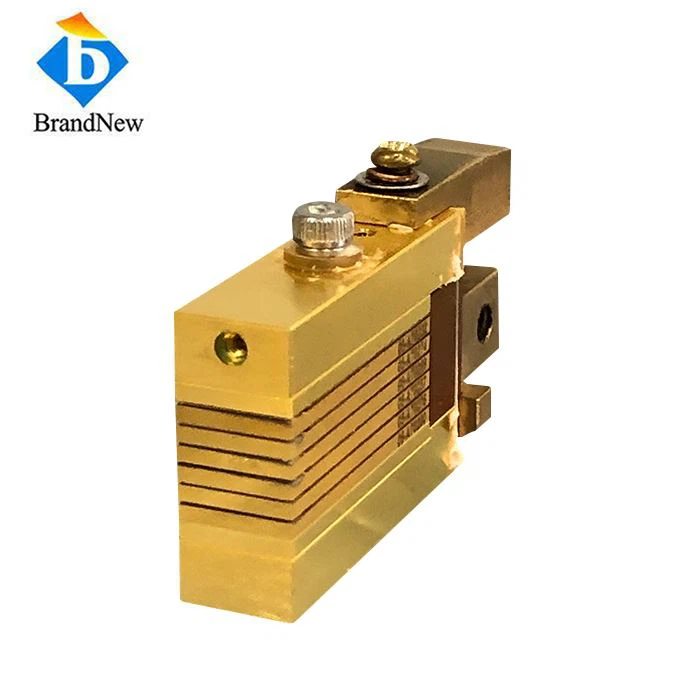

MCC Diode Laser Bars Stack
Overview
Features:
MCC Bar, micro channel, CW
100W output per bar, 3-6 Bars optional
High reliability diode laser vertically stack
Widely used in hair removal application
Besides regular stack, Brandnew can also customize various stack upon our client's requirements.
Note:
The laser light emitted from this Device is invisible and will harmful to the human eye. Avoid looking directly into the fiber output or into the collimated beam along its optical axis when the device is in operation. Proper laser safety eyewear must be worn during operation.
Spec sheet
Item No.:WC808VS600
| Optical | |
| Center Wavelength | 808nm |
| Output Power Per Bar | 100W |
| Number of Bars | 6 |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | ~100A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~12V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Drawing
![{]]PTL2}`I@TXG5T)}IUR@4](/Content/uploads/202098745/20200710135017cb3c6a776ab348ad85bf00f00bb441a4.png "product-1-1")
