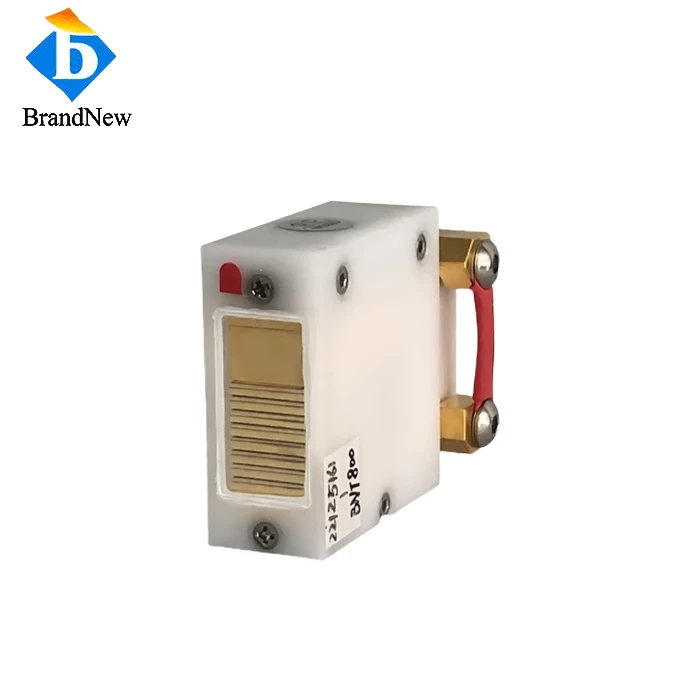

800W 808nm Micro Channel Diode Laser Stack
800W 808nm Diode Laser Stack is Microchannel Cooled Laser Diodes. Copper based microchannel coolers have long proven themselves to be a highly effective means of cooling high power diode lasers.
Features
Micro-channel design; High peak power
High duty cycle
Corrosion protection
Hard-solder packaging technology
Application
1.Medical
2.Aesthetic
3.Skin care
4.Tattoo removal
5.Hair removal
Data sheet
Item No.:WC808VS800
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 100W |
| Number of Bars | 8 |
| Electrical | |
| Operating Current Iop | 100A |
| Threshold Current Ith | 20A |
| Operating Voltage Vop | 16V |
| Thermal | |
| Operating Temperature | 25℃ |
| Storage Temperature | -40-80℃ |
