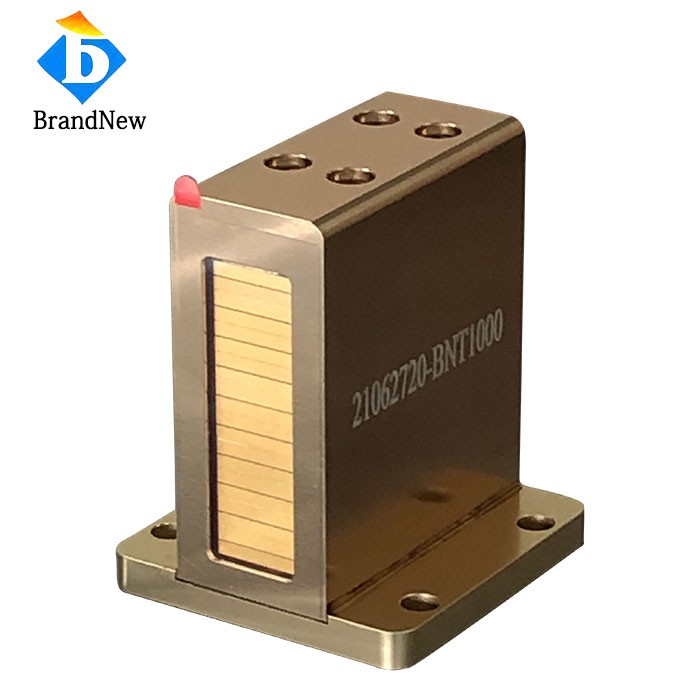

1000W 10bars 808nm Diode Laser Stack for KM Hair Removal Machine
Advantage:
high power and ultra short pulse duration
high peak power >1000watt
Long lifetime 30 million shots
Long warranty time 20 months
Single 808nm or triple wavelength optional
Big bar to bar space for better heat dissipation
Application:
Hair Removal
Diode Laser Repair and Replacement
Why your diode laser stack is easily burnt ?
1. Impurities and dust on the laser emitting surface: when laser by stimulated emission of radiation, partial laser beam was absorbed by the impurities and dust, and form a"spot"which will directly damage the laser interface. Repeated using in that case also causes lower laser energy transmission and shorten laser lifetime.
2.Unreasonable design of water channel in the laser cavity and poor materials. Water spilt or condensation happened during laser operation, will shorten laser lifetime and completely destroys the laser. Of course, it will increase the after-sales cost and reduces customer satisfaction.
3.Poor cooling system of laser diode, which will result in laser damaged,not only shorten laser lifetime but also affect hair removal result.
Item No: WC808VS1000
Item Name: 1000W 10bars 808nm Diode Laser
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Working Mode | QCW |
| Output Power Per Bar | 100W |
| Number of Bars | 10 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 12Deg |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current | ~100A |
| Threshold Current | ~10A |
| Operating Voltage | ~18V |
| Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
| Others | |
| Coolant | Distilled Water |
| Flow Rate/Bar | 4~6L/min |
| Max Inlet Pressure | 350~500kPa |
| Water Temperature(No Condensation) | 23~27℃ |
| Filtered Water Particles | <20μm |
Drawing:
Packing:
