Description
Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced bnt800 808nm 800w diode laser stack. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

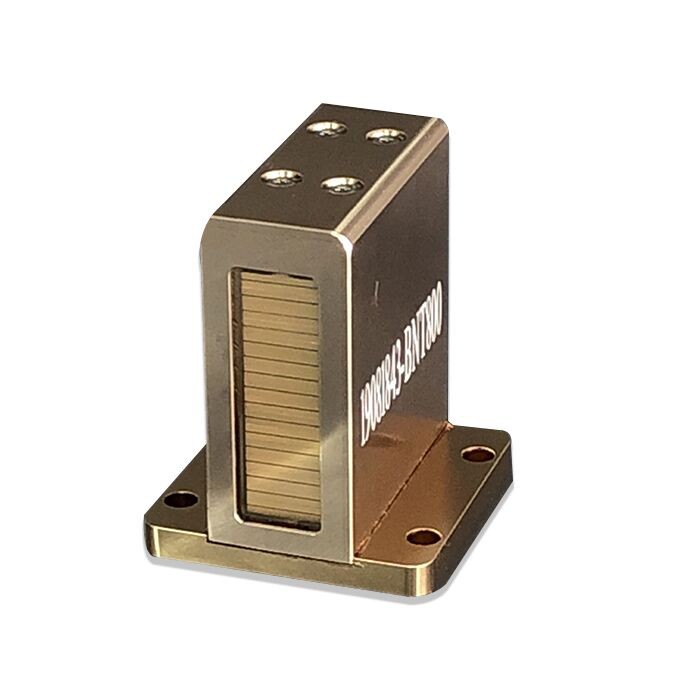

BNT800 808nm 800W Diode Laser Stack
Water Cooled Vertical Stacks VS Series (QCW)
◆AuSn hard solder assembly technology, Higher reliability
◆Standard configuration and customer-design package
◆Optimized OE conversion efficiency
Data sheet
Item No.: WC808VS800
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 50W/Bar |
| Number of Bars | 16 |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | ~45A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~28V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Drawing
![]39@A1UUXXK)~V3A@4G3`ZO](/Content/upload/201998745/201908141543058622432.png)
