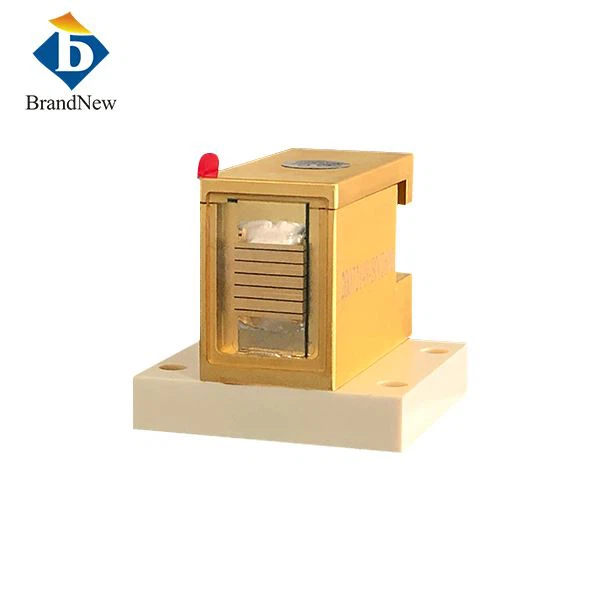

Replace CW Micro Channel Diode Stack
The CW Micro Channel Diode Stack is a cutting-edge high-power laser solution designed for continuous-wave (CW) operation, offering superior efficiency and reliability for a variety of industrial, scientific, and medical applications. This diode stack integrates multiple laser diodes into a compact micro-channel cooling system, ensuring stable, high-performance operation while maintaining a high power-to-size ratio. Ideal for applications requiring precise, long-duration light output, the CW Micro Channel Diode Stack is a versatile tool for laser pumping, material processing, and laser spectroscopy
Advantages:
Same size as CW micro channel diode laser stack.
Ausn Bars imported from Jenoptik Germany.
Water quality requirements are not so high
Quality warranty is 18 months.
Number of shots: No limitation within 18 months.
Used for most of micro channel hair removal machine.
Data sheet
Item No.:WC808VS600
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 100W |
| Number of Bars | 6 |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | ~100A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~12V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Package Drawing
![{]]PTL2}`I@TXG5T)}IUR@4](/Content/uploads/202098745/20200710135017cb3c6a776ab348ad85bf00f00bb441a4.png "product-1-1")
