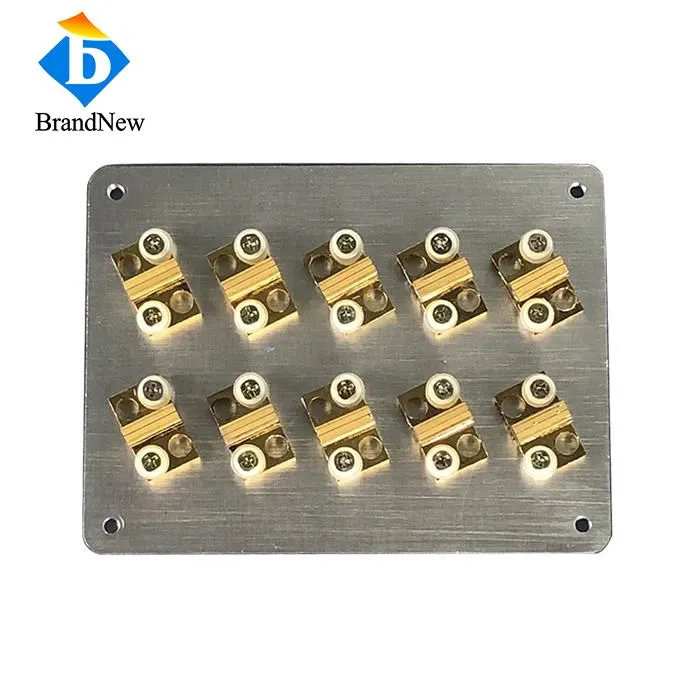

300W 976nm QCW Stack Diode Laser Bar
Product Description
BrandNew provides a variety of conductively cooled laser diode arrays. These stacked arrays can be built with 2 to 20 diode bars of 100 W QCW to 300 W QCW. The compact and robust packages with AuSn hard solder, allow good thermal control and reliable at high temperature of operation.
Advantages:
1.AuSn Solder Packaging 2.High Temperature Work 3.High Reliability 4.High Precision 5.High Power 6.High Duty Cycles 7.Long-lifetime
Application
Military Project Laser Pumping Industry Scientific Research
Specification:
Item No.: CC976HA300
| Optical | |
| Center Wavelength | 976±10nm |
| Output Power | 300W |
| Working Mode | QCW |
| Fast Axis Divergence(FWHM) | 50Deg |
| Slow Axis Divergence(FWHM) | 10Deg |
| Spectral Width FWHM | 6nm |
| Frequency | 1-5hz |
| Pulse Width | 5-6ms |
| Duty Cycle | ＜2% |
| Electrical | |
| Operating Current Iop | 300A |
| Threshold Current Ith | 45A |
| Operating Voltage Vop | 2V |
| Power Conversion Efficiency | 50% |
| Thermal | |
| Operating Temperature | -45-+60℃ |
| Storage Temperature | -55-+85℃ |
Package drawing:
