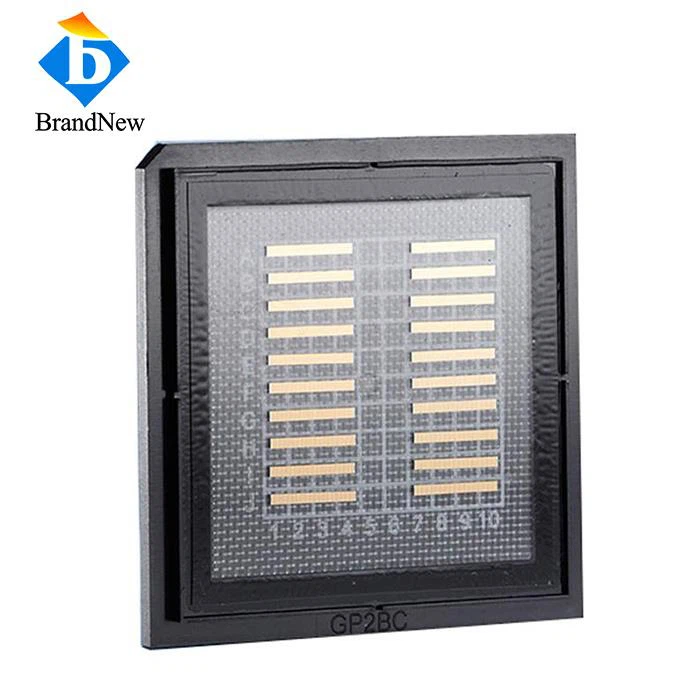

15W 975nm 976nm 980nm Unmounted Laser Bar

15W 975nm 976nm 980nm Unmounted Laser Bar

Operation mode CW
Send Inquiry
Chat Now
Description

15W 975nm 976nm 980nm Unmounted Laser Bar

Single Emitter Laser Chip



Product Description

Ultra-high brightness‌: In the wavelength range of 405 nm-2100 nm, the single-emitting point laser chip can achieve ultra-high brightness, which means that in a very small luminescent plasma volume (such as 100 μm level), it can still produce significant of irradiance.



Fiber-coupled or free-space beam output: This chip supports fiber-coupled or free-space beam output, providing a high degree of optical flexibility so that the beam can be delivered and controlled in the desired way.



Data sheet:

Item No.: LC976SE15

Operation
Center Wavelength 973-980nm
Output Power 15W
Operation Mode CW
Geometrical
Emitter Width 95um
Cavity Length 3990-4010um
Cavity Thickness 95-120um
Cavity Width 390-410um
Electro Optical Data
Threshold Current 0.7-1.0A
Operating Current 10.8-12A
Operating Voltage 1.75-1.95V
Slope Efficiency ≥0.95W/A
Slow Axis Divergence 9Deg
Fast Axis Divergence 29Deg
Spectral Width 4nm
Polarization TE



FAQ:

What is the lead time?

Normally 3-5 days. Customized products need 15 working days.



Do you have any MOQ limit?

Low MOQ, 10pcs for sample checking is available
