Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 3w 1550nm unmounted diode laser bar. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

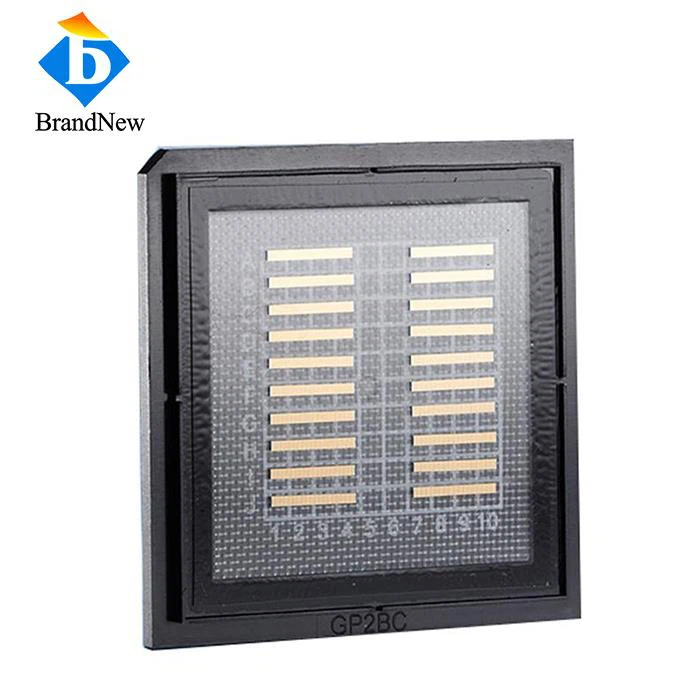

3W 1550nm Unmounted Diode Laser Bar
Quick details:
Other output powers and wavelengths are available
high temperature resistance characteristics
COS Packaging Available
Unique technology for highest reliability and lifetime
Low beam divergence and small light emitting aperture
Application: Medical Printing Industry Pumping
Data sheet
Item No.: LC1550SE3
|
Optical |
|
|
Center Wavelength |
1550nm |
|
Output Power |
3W |
| Fast-Axis Divergence |
32Deg |
|
Slow-Axis Divergence |
12Deg |
|
Working Mode |
CW |
|
Electrical |
|
|
Operating Current Iop |
4A |
|
Threshold Current Ith |
0.5A |
|
Operating Voltage Vop |
1.6V |
|
Thermal |
|
|
Operating Temperature |
25℃ |
|
Storage Temperature |
-30~70℃ |
