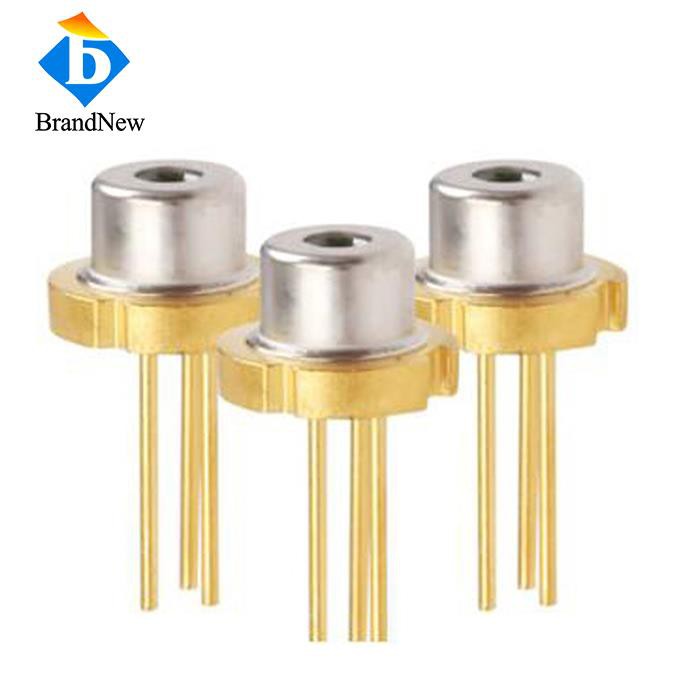

808nm TO-Mount Laser Diode
Product Description
808nm TO-Mount Laser Diode is a high-performance multiple transverse mode laser diode. The laser emits 500mW optical power with CW mode at 808nm wavelength. 808nm TO-Mount Laser Diode is sealed by standard TO-56 package with a flat window. Features and benefits a high electro-optical efficiency and hard solder packaging, it provides reliable operating with high performances, It's ideal for illumination applications.
Data Sheet:
| Item | Parameter | Unit | Min. | Typical | Max. |
| Optical | Output power | mW | 500 | - | |
| Lasing Wavelength | nm | 804 | 808 | 812 | |
| Spectral Width | nm | - | 1.0 | 1.2 | |
| Emitting Area width | µm | - | 50 | - | |
| Temperature Coefficient | nm/℃ | - | 0.30 | - | |
| Fast Axis Divergence | deg | 34 | 38 | ||
| Slow Axis Divergence | deg | - | 7 | 10 | |
| Electrical | Slope Efficiency | W/A | 1.00 | - | - |
| Threshold Current | A | - | 0.10 | 0.15 | |
| Operating Current | A | - | 0.50 | 0.56 | |
| Operating Voltage | V | - | 1.75 | 2.00 | |
| Others | Operating Temperature | ℃ | 10 ~ 50 | ||
| Storage Temperature | ℃ | -10 ~ 60 |
