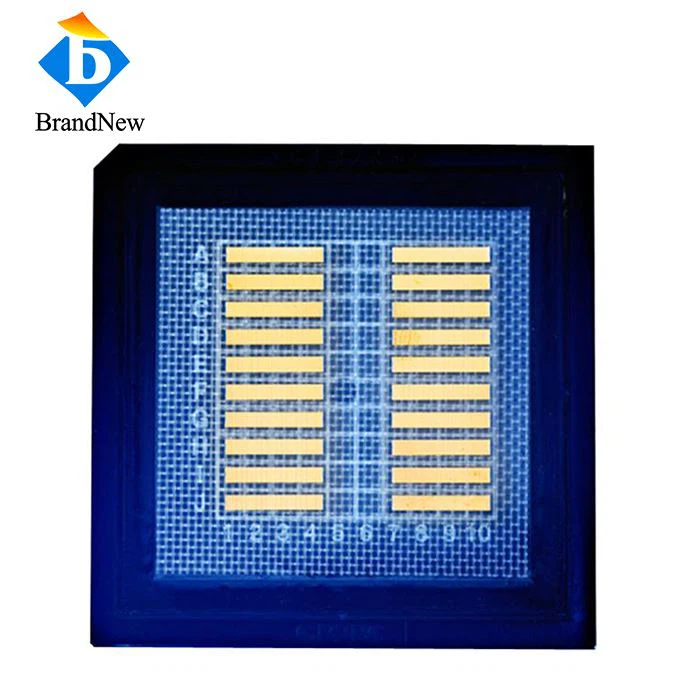

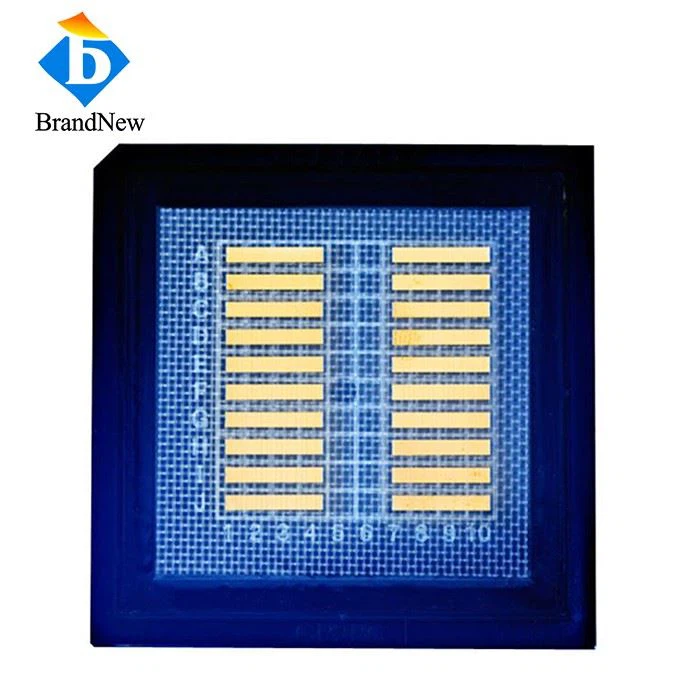

High Power 100W 976nm CW Multi Emitter Diode Laser Chip With 47 Emitters
Quick Detail:
100W output power, 976nm central wavelength
CW working mode, 47 emitters, TE Polarization Mode
Advanced cavity passivation coating technology
Under continuous current tests is 105W @ 110A
Unique technology for highest reliability and lifetime
Feature:
Low voltage, long lifetime, high efficiency
Excellent solderability, high brightness
High temperature resistance characteristics
Stability and reliability performance
Application:
Dermatology and surgery
Laser Illumination
Laser pumping source
High-brightness semiconductor laser modules
Data Sheet
Item No: LC976DL100
Item Name: CW 100W 976nm Multi Emitter Laser Chip
| Optical | Min | Typ | Max |
| Central Wavelength | 973nm | 976nm | 980nm |
| Output Power | 100W | ||
| Working Mode | CW | ||
| Spectrum Width | 4nm | ||
| Number of Emitter | 47 | ||
| Emitter Width | 100um | ||
| Emitter Pitch | 200um | ||
| Filling Factor | 50% | ||
| Bar Width | 9900um | 10000um | 10100um |
| Cavity Length | 1990 | 2000um | 2010 |
| Thickness | 100um | 120um | 140um |
| Fast Axis Divergence(FWHM) | 42deg | ||
| Slow Axis Divergence (FWHM) | 12deg | ||
| Polarization Mode | TE | ||
| Slope Efficiency | 1.15W/A | ||
| Electrical | |||
| Operating Current Iop | 120A | ||
| Threshold Current Ith | 30A | ||
| Operating Voltage Vop | 1.6V | 1.85V | |
| Conversion Efficiency | 55% | ||
| Thermal | |||
| Operating Temperature | 25℃ | ||
| Wavelength Temperature Coefficient | 0.35nm/℃ |
Packing
Payment
T/T and Western Union, For your Choice
Package
FedEx,DHL Express,UPS,TNT
Return Policy
Buyer Pay the Shipping Cost.
Warranty
1.5 years warranty time, in 1 years, all the service are free.
