Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 65w 905nm to56 to can laser diode. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

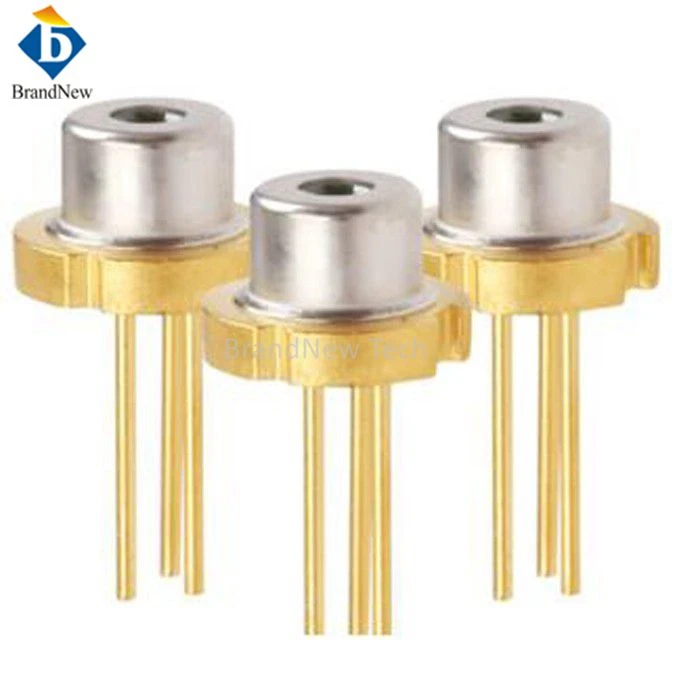

65W 905nm TO56 TO CAN Laser Diode
Features:
- Standard TO56 compact cylindrical structure
- Low thermal resistance and stable peak power output
- Narrow 7nm FWHM, strong anti-interference capability
Applications:
- Machine Vision & Scanning Detection: Online contour scanning, workpiece dimension measurement, automated production line positioning calibration sensor light source
- 3D Dynamic Scanning & Printing Ranging: 3D galvanometer dynamic scanning ranging module, 3D printing real-time height detection
- Laser Processing Auxiliary Positioning: Auxiliary ranging sensor for laser cutting, laser welding and laser cleaning equipment
This 65W 905nm TO56 TO CAN pulsed laser diode comes with complete standardized optical & electrical parameters, narrow spectral width and controllable divergence angle. Adopting hermetic metal packaging, it delivers stable 65W peak pulse power under 5kHz repetitive narrow pulse drive. Compatible with matching laser collimators, it is widely used in machine vision scanning, 3D dynamic ranging, industrial laser processing auxiliary positioning, automotive lidar and outdoor security ranging equipment.
Data Sheet
Item No: TO905DL65
| Optical | Typical Value |
| Center Wavelength | 905nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 65W |
| Beam Size | 200*10um |
| Fast Axis Divergence FWHM | 25Degree |
| Slow Axis Divergence FWHM | 10Degree |
| Spectrum width FWHM | 7nm |
| Electrical | |
| Operating Current Iop | 30A |
| Threshold Current Ith | 1A |
| Operating Voltage Vop | 24V |
| Frequency | 5kHz |
| Pulse Width | <100ns |
| Duty Cycle | <0.05% |
| Thermal | |
| Test Temperature | -40~80℃ |
| Storage Temperature | -40~100℃ |

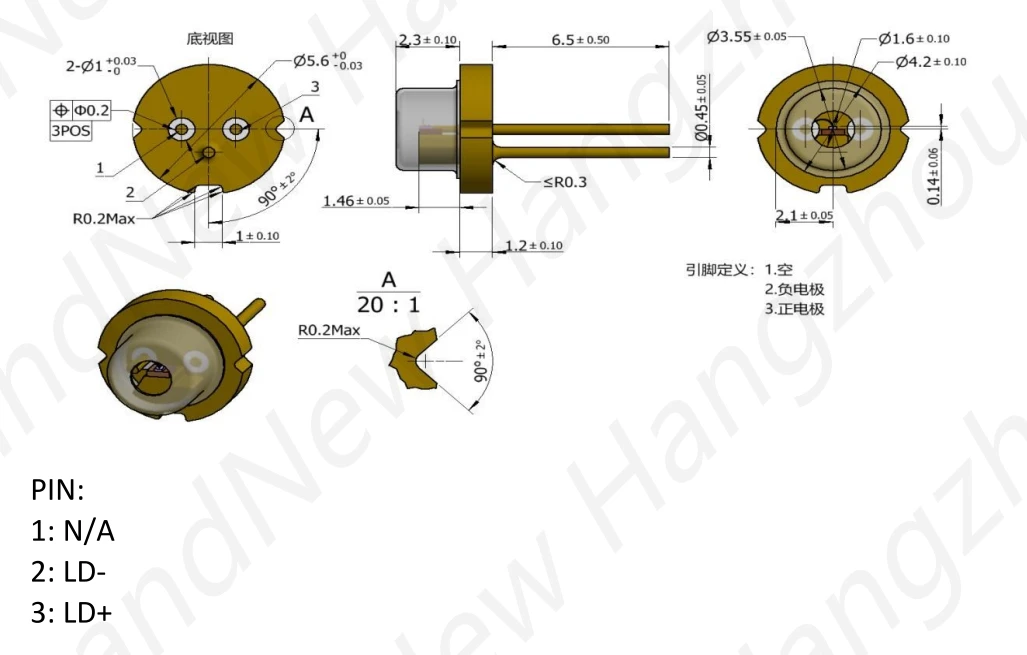

Drawing:
